Product Details:
|
| Use: | FTTH | Product Name: | SFP Optical Transceiver |
|---|---|---|---|

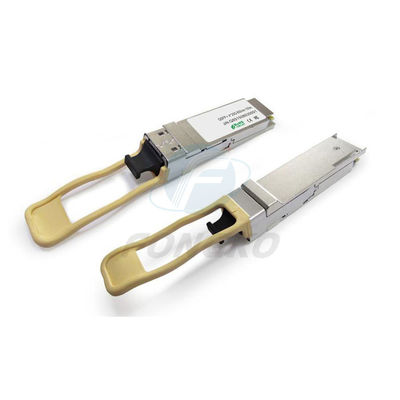

| Condition: | New | Keywords: | 100Gb/s QSFP28 SR4 100m Optical Transceiver |
| Low Power Consumption: | <3.5W | Operating Case Temperature:: | 0°C To +70°C |
| High Light: | 100m SFP Optical Transceiver,QSFP28 SFP Optical Transceiver,SR4 sfp gigabit ethernet module |
||
| Absolute Maximum Ratings | |||||
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| Rx Damage Threshold,per Lane | PRdmg | 5.5 | dBm | ||
| Recommended Operating Conditions | ||||||
| Parameter | Symbol | Min | Typ | Max | Units | Note |
| Operating Case Temperature | TC | 0 | - | +70 | °C | |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.47 | V | |
| Data rate | 103.125 | 112 | Gb/s | |||
| Link Distance (OM3) | 70 | m | ||||
| Link Distance (OM4) | 100 | m | ||||
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
| Transmitter | ||||||
| Signaling rate per lane | DRPL | 25.78125 ± 100 ppm | Gb/s | |||
| Differential pk-pk input voltage tolerance | Vin,dpp |
900 |
mV |
|||
| Single-ended voltage tolerance | Vin,pp | -0.35 | +3.3 | V | ||
| Module stress input test | Per IEEE 802.3bm | |||||
| Receiver | ||||||
| Signaling rate per lane | DRPL | 25.78125 ± 100 ppm | Gb/s | |||
| Differential data output swing | Vout,pp | 400 | 800 | mV | ||
| Eye width | Ew | 0.57 | UI | |||
| Vertical eye closure | VEC | 5.5 | dB | |||
| Differential termination mismatch | Tm | 10 | % | |||
| Transition time, 20% to 80% | Tr,Tf | 12 | ps | |||
