Product Details:
|
| Use: | FTTH | Product Name: | SFP Optical Transceiver |
|---|---|---|---|

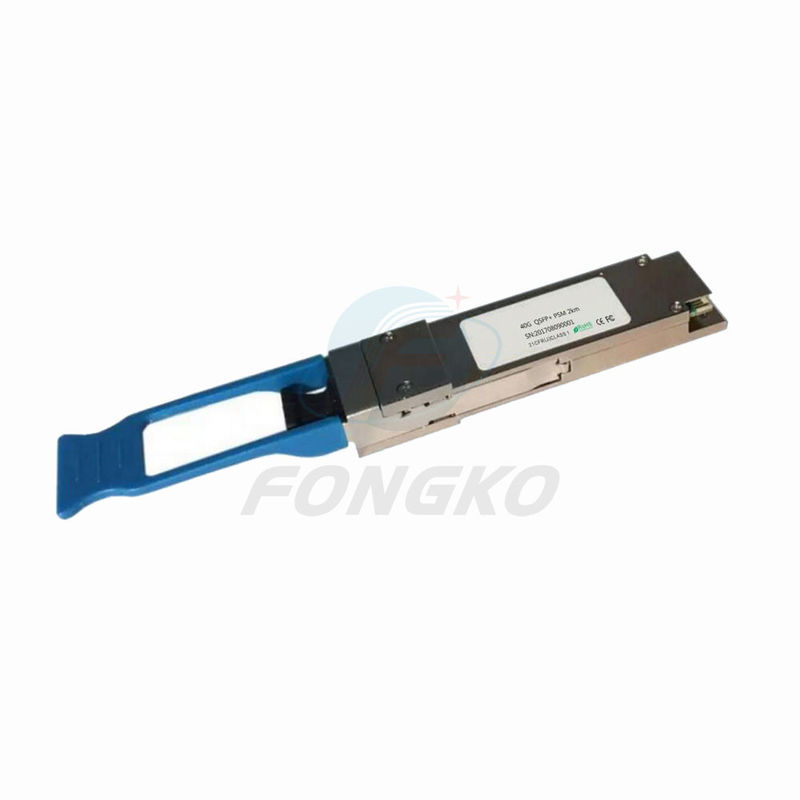

| Condition: | New | Keywords: | 40Gb/s QSFP+ PSM 2km Optical Transceiver |
| Low Power Consumption: | < 2.0W | Operating Case Temperature:: | 0°C To +70°C |
| High Light: | 2km SFP Optical Transceiver,PSM SFP Optical Transceiver,PSM sfp transceiver module |
||
| Absolute Maximum Ratings | |||||
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.3 | 3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| Damage Threshold, per Lane | DT | 3.4 | dBm | ||
| General Operating Characteristics | ||||||
| Parameter | Symbol | Min | Typ | Max | Units | Note |
| Bit Rate per Lane | BR | 10.313 | Gb/s | 1 | ||
| Bit Error Ratio | BER | 10-12 | 2 | |||
| Distance on SMF | D1 | 2 | Km | 3 | ||
| Optical Characteristics (TOP(C) = 0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC=3.13 to 3.47 V) | ||||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λc | 1270 | 1310 | 1350 | nm | |
| Ave. output power | PAVE | -5.2 | +1 | dBm | ||
| Difference in launch power between any two lanes (OMA) | DL |
5 |
dB |
|||
| Extinction Ratio | ER | 3.5 | dB | |||
| Peak power, each lane | PP | 4 | dBm | |||
| Dispersion penalty, each lane | TDP | 3.5 | dB | |||
| Average launch power of OFF transmitter, each lane | POFF |
-30 |
dB |
|||
| Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 | SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 | Hit Ratio = 5x10-5 | ||||
| Receiver | ||||||
| Operating Wavelength | λc | 1270 | 1350 | nm | ||
| Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1) |
PSEN1 |
-11.5 |
dBm |
3 |
||
| Average Receive Power,each lane | PAVE | -11 | +2.4 | dBm | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -15 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
