SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector

SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector
SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector

Large Image :  SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: RoHs, SGS, ISO
Model Number: FK2303
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector

Description
Insertion Loss: ≤0.30(Max: 0.5dB) Optical Fiber: 2.0*3.0 Mm Cable
Fiber Mode: Single & Multi Mode One-Time Assembly Yield: ≥ 97%
Tensile Strength: ≥ 30N（2.0x3.0 Drop Cable.） Return Loss: UPC ≥ 40dB, 55dB Typical At 25 Degrees C + 5degrees APC ≥ 55dB, 60dB Typical At 25 Degrees C +/- 5degrees
Highlight:

Field Install Fiber Optic Fast Connector

,

SC APC Fiber Optic Fast Connector

,

FTTH Fiber Optic Fast Connector

SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconiu ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable.

Keyed Characteristics
* Linkage structure design, when docking with equipment and joints, the reserved Micro bend remains unchanged;
* Double V-slot structure design, fiber optic docking is stable and reliable;
* The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
* Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.

Application
* All fiber interconnection;
* Telecom Distribution and Local Area Networks;
* FTTH and FTTX;
* Passive optical networks [ATM, WDM, Ethernet];
* Broadband, Cable TV(CATV)

Type
Parameters
Insertion loss
≤ 0.3dB (1310nm & 1550nm)
Return loss
≤ -45dB
Bare fiber strength
>5N
Clad strength
>10N
Tension
>50N
Mechanical durability (500times)
IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature
5 ºC to +70 ºC

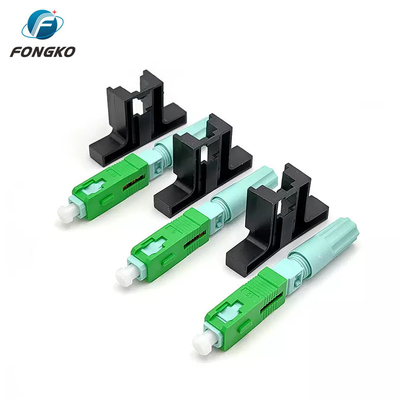

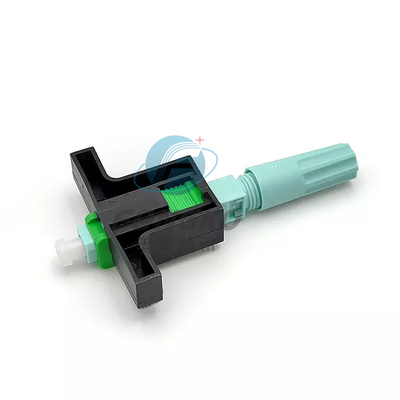

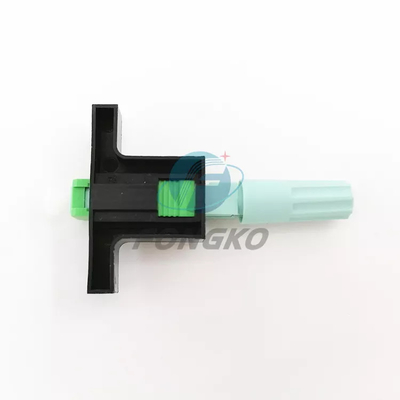

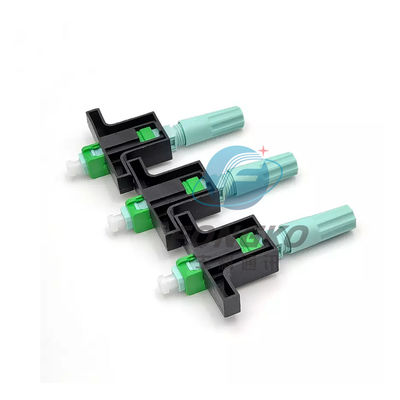

SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector 0

SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector 1





SC APC Fiber Optic Fast Connector Field Install FTTH Quick Optical Connector 2
