LC APC UPC FTTH Fast Connect Fiber Connectors

Large Image : LC APC UPC FTTH Fast Connect Fiber Connectors

Product Details:

Place of Origin:	Shenzhen,Guangdong,China
Brand Name:	Fongko
Certification:	Rohs, SGS, ISO
Model Number:	FKLU-003

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiatable
Payment Terms:	T/T, Western Union, L/C

Contact Now

LC APC UPC FTTH Fast Connect Fiber Connectors

Description

Insertion Loss:	≤0.30(Max: 0.5dB)	Optical Fiber:	0.9, 2.0, 3.0mm Cable
Fiber Mode:	Single & Multi Mode	Operation Time:	About 50 (fiber Cut Not Included)
Fastening Strength Of Naked Fiber:	≥5N	Tensile Strength:	≥50N
Return Loss:	UPC≥50dB, APC≥60dB	Working Temperature:	40 ~+75 0C
High Light:	LC APC Fast Connect Fiber Connectors , FTTH Fast Connect Fiber Connectors , LC UPC Fiber Optic Quick Connector

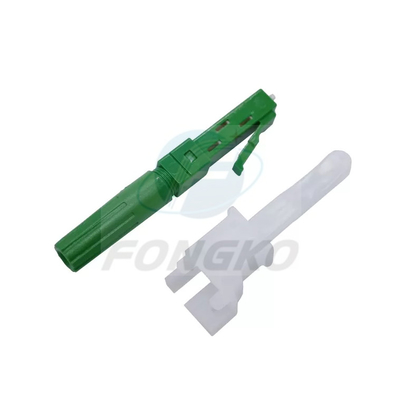

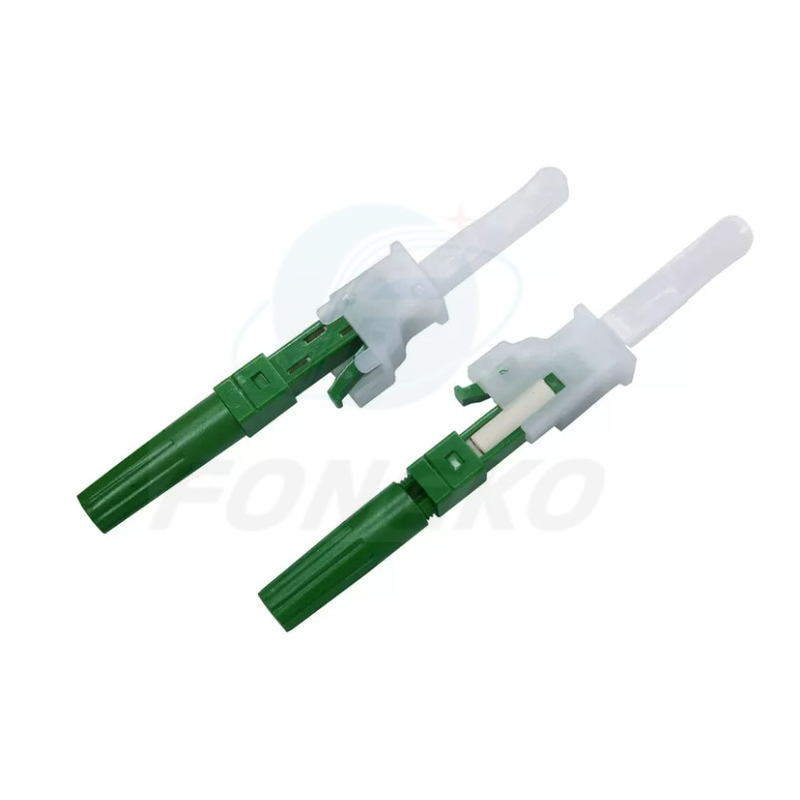

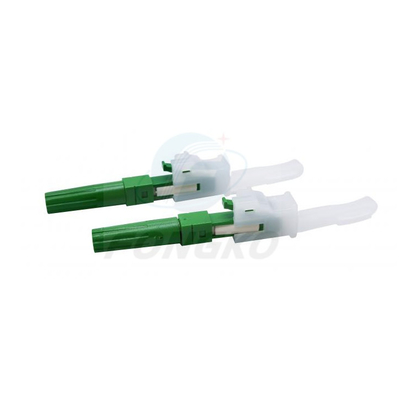

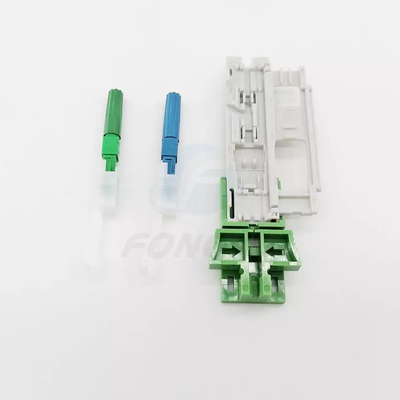

LC APC UPC Field Installable Connector

LC/APC Fast Field Installation Connector also called Mechanical connector, most people call it fast connector for short. It is a kind of optical on-site connector, used in field wiring operation and FTTH project where need fast and stable connection. Because it has embedded fiber and pre-polished and heat oven ferrule, no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.

Features

* Do not need hot melt, pre-polished and curing ceramic ferrule, high quality, ensure <0.5dB loss and low return loss.
* Metal V groove, unique design, it can effectively prevent the volatilization of matching gel and prolong the service life
* Good resistance to high and low temperature changes, stable and reliable performance
* Cable stripper length: 15mm coating / 10mm bare fiber
* NOT ONLY USE FOR 2.0*1.6MM, but also for bare fiber 250um. 0.9mm, 3mm round cable.
* Can made any length of fiber optic patch cord on-site
* On-site installation, simple and quick operation, only 2 minutes

Application
* All fiber interconnection;
* Telecom Distribution and Local Area Networks;
* FTTH and FTTX;
* Passive optical networks [ATM, WDM, Ethernet];
* Broadband, Cable TV(CATV)

Model	FKLU-003
Fiber Mode	SM(singlemode),
Insertion loss	Average value≤0.25 dB,max value≤0.3 dB
Fiber cable type	2.0*1.6mm drop cable, indoor cable 3mm, 1.6mm, 0.9MM, 250um bare fiber
Operation temperature	-40℃ - 75℃
Endurance	100times re-connections, ≤0.3dB
Operation temperature:	-40℃ - 75℃

LC APC UPC FTTH Fast Connect Fiber Connectors 0

LC APC UPC FTTH Fast Connect Fiber Connectors 1
