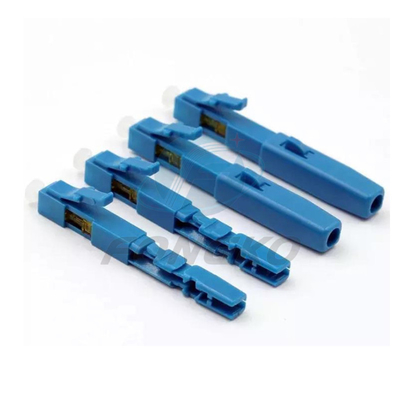

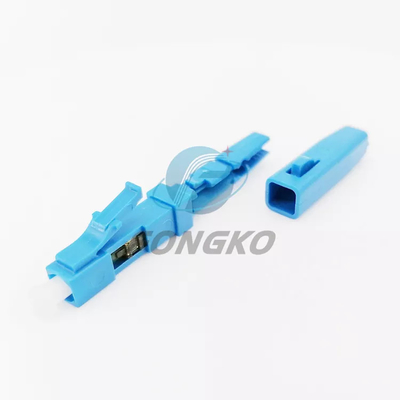

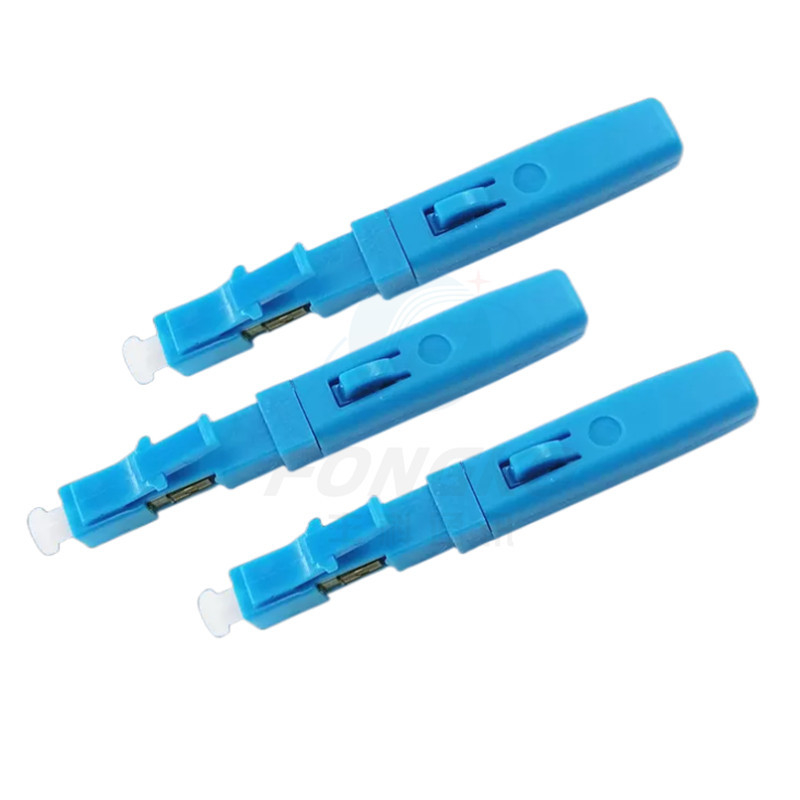

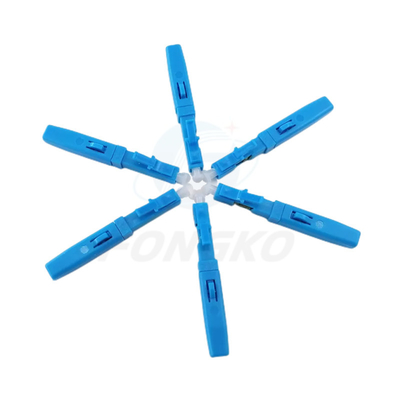

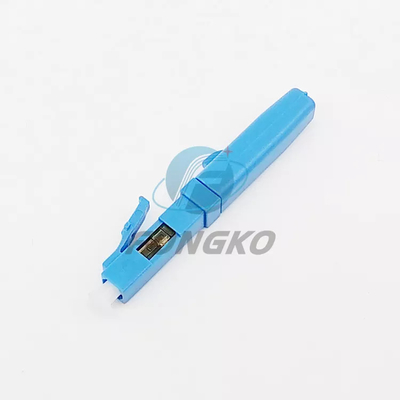

LC UPC FTTH Cold Fiber Optic Quick Connector ABS Multimode

Large Image : LC UPC FTTH Cold Fiber Optic Quick Connector ABS Multimode

Product Details:

Place of Origin:	Shenzhen,Guangdong,China
Brand Name:	Fongko
Certification:	Rohs, SGS, ISO
Model Number:	FKLU-002

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiatable
Payment Terms:	T/T, Western Union, L/C

Contact Now

LC UPC FTTH Cold Fiber Optic Quick Connector ABS Multimode

Description

Insertion Loss:	≤0.30(Max: 0.5dB)	Optical Fiber:	2.0*3.0 Mm Cable
Fiber Mode:	Single & Multi Mode	Operation Time:	About 50 (fiber Cut Not Included)
Fastening Strength Of Naked Fiber:	≥5N	Tensile Strength:	≥50N
Return Loss:	UPC≥50dB, APC≥60dB	Working Temperature:	40 ~+75 0C
High Light:	Multimode FTTH Fiber Optic Quick Connector , ABS Fiber Optic Quick Connector , LC UPC ABS Fiber Quick Connector

LC UPC Fiber Optical Field Assembly Fast Connectors

LC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector forshort. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection.Because it has embedded fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers

Features

1. pre-polished and curing ceramic ferrule
2. pre-embedded fiber optic fiber G657A1 G652D, G657A2
3. Cable stripper length: 22mm / 10mm
4. can only use for 0.9mm indoor cable

Place of Origin	China
Type	Fast Connector
Keywords	Fiber Optic Fast Connector LC/UPC
Material	ABS
Model	FKLU-002
Fiber Mode	SM(singlemode),
Insertion loss	≤0.3 dB
Operation temperature	-40℃ - 75℃
Endurance	100times re-connections, ≤0.3dB
Operation temperature:	-40℃ - 75℃

LC UPC FTTH Cold Fiber Optic Quick Connector ABS Multimode 2
