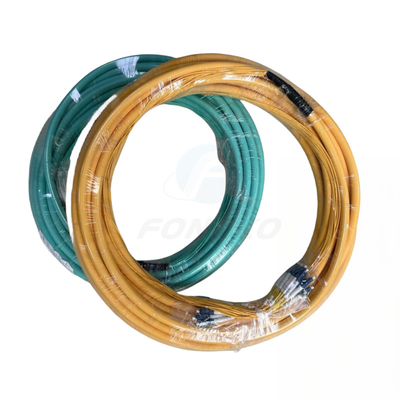

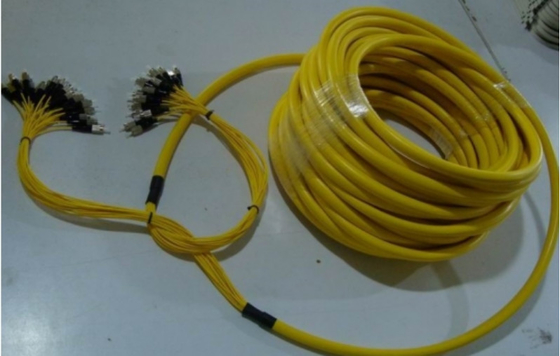

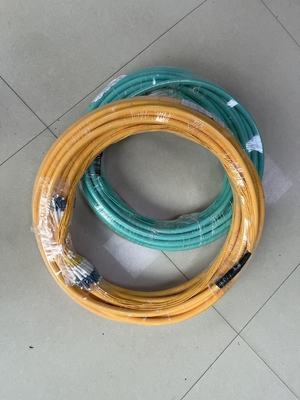

Product Details:
|
| Product Name: | Fiber Optic Fanout Cable | Fiber Type: | G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc |
|---|---|---|---|
| Fiber Counts: | 1-96 Cores | Jacket Material: | PVC, LSZH |
| Working Temperature: | 40 ~+75 0C | Cable Diameter: | 2 - 8.0mm |
| Connector: | LC/SC.ST/FC | ||
| High Light: | 48 Cores Optical Breakout Cable,G 657A1 Optical Breakout Cable |
||
Low insertion loss
High return loss
Good exchange ability
Good durability
High temperature stability
100% interferometer measurement
Telcordia GR-326-CORE
Application
|
Item
|
Value
|
|
Connector
|
SC LC ST FC
|
|
Operating wavelength
|
1260-1650nm
|
|
Fiber type
|
G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
|
|
Cable jacket
|
LSZH, PVC
|
|
Branch Cable Dia
|
Φ2mm Φ0.9mm
|
|
Polish manner
|
UPC, APC(8°), PC
|
|
Cable color
|
Yellow, Aqua, Orange
|
|
Insertion Loss
|
≤ 0.1dB (Master) ≤ 0.3dB (Standard)
|
|
Return Loss
|
UPC ≥ 55dB, APC ≥ 60dB (typ.65dB)--Single mode;
UPC≥ 35dB (typ.38dB)-Multimode |
|
Operating temperature
|
-40 ° C to 85 ° C
|
