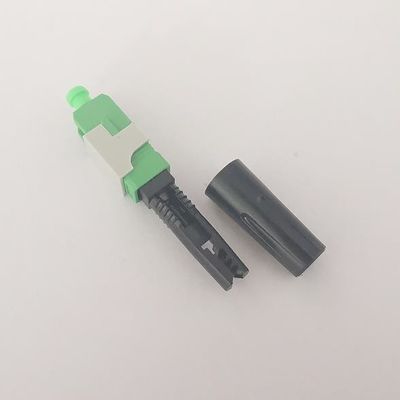

Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical

Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical
Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical
Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical

Large Image :  Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: FKFASS-007
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: L/C, T/T, Western Union
Contact Now

Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical

Description
Product Name: Fiber Optic SC APC Fast Connector Material: Plastic
Insertion Loss: <0.3dB FIBER Type: Single Mode
V Groove Material: Ceramic Connector Type: SC / APC & SC / UPC
High Light:

FTTH Field Assembly Optical Connector

,

Fiber Optic Field Assembly Connector

,

Ceramic Fiber Optic Fast Connector

SC APC UPC Fibre Optic Field Install Mechanical Monnector Fiber Optical Fast Connectors
Fast Connector is also called Field Assembly Connector, Field Installation connector, quickly assembly connector. It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body. The assembly only requires normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Features
* Pre-stubbed factory-polished ferrule that couples to the fiber being terminated.
* Precision mechanical alignment insures low loss with a prosprietary gel.
* Low insertion loss; Ease of installtion
* Low cost& reliability; Low environmental sentitivity
* Connector Ferrule: Ceramic
Insertion loss
Average ≤ 0.3dB,Max ≤ 0.5dB
Return Loss
UPC ≥ 40dB, 55dB typical at 25 degrees C + 5degrees
APC ≥ 55dB, 60dB typical at 25 degrees C +/- 5degrees
One-Time Assembly Yield
≥ 97%
Assembly Repeatability
≥ 5 times
Average Assembly Time
≤ 3 minutes
Life-Time
≥ 30 years
Tensile Strength
≥ 40N(2.0x3.0 drop cable.)
Operation Temperature
-40℃~+85℃
Standards
Intermateability
Connectors are FOCIS； Compliant with TIA/EIA 604-； 3 (SC), FOCIS 10 (LC)
Approvals and Listings
Passed EIA/TIA 568-B.3
Design and Test Criteria
Telcordia GR-1209 and GR-1221

Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical 0

Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical 1


Application:
● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTX;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV)

Fiber Optic Field Assembly Connector SC APC UPC FTTH Mechanical 2
