Product Details:
|

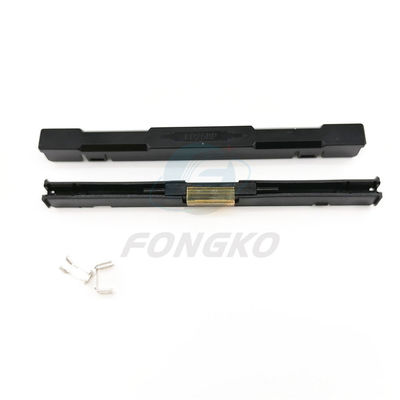

| Use: | FTTH Fiber Terminal End | Product Name: | Fiber Optical Mechanical Splicer |
|---|---|---|---|
| Model: | FKFL925BP | Optical Fiber: | 2.0*3.0 Cable/0.9mm/2.0mm/3.0mm |
| Fiber Mode: | Singlemode & Multimode | Insertion Loss: | ≤0.3dB (Max 0.5) |
| High Light: | FTTH Fiber Mechanical Splice,Bare Fiber Mechanical Splice,3.0MM Fiber Optic Fast Connector |
||
Features
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splice storage
Cost effective
| Applicable for | 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
| Optical fiber diameter | φ125um (657A&657B) |
| Tight buffer diameter | φ250um |
| Fiber mode | Single mode |
| Operation time | About 10s (exclude fiber cut) |
| Insert loss | ≤0.3dB (1310nm & 1550nm) |
| Return loss | ≥45dB |
| Fastening strength of naked fiber | ≥ 5N |
| Tight clamping force cladding | ≥ 8N |
| Tensile strength | ≥ 50N |
| Using temperature | -45°C~+80°C |
