Product Details:
|
| Type: | Fiber Optic Patch Cord | Network: | FTTH FTTX |
|---|---|---|---|
| Type: Indoor Bundle Cable: | -40~+60 | Outer Sheath: | LSZH/PVC |
| Fiber Color: | IEC Standard | Core Number: | 12 Core |
| Fiber Type: | G652D & G657A1 & G657A2 & 62.5/125 & 50/125 | Cable Diameter: | 6.0 - 6.8mm |
| Usage: | Indoor Distribution | ||
| Highlight: | 12F CCTV Camera Cable,6mm CCTV Camera Cable,Indoor Flame Retardant Cable |
||
|
|
MPC-02
|
MPC-04
|
MPC-06
|
MPC-08
|
MPC-10
|
MPC-12
|
|||||
|
Cable Diameter(mm)
|
4.1±0.25
|
4.8±0.25
|
5.1±0.25
|
6.2±0.25
|
6.5±0.25
|
6.8±0.25
|
|||||
|
Cable Weight(kg/km)
|
12
|
20
|
24
|
29
|
32
|
35
|
|||||
|

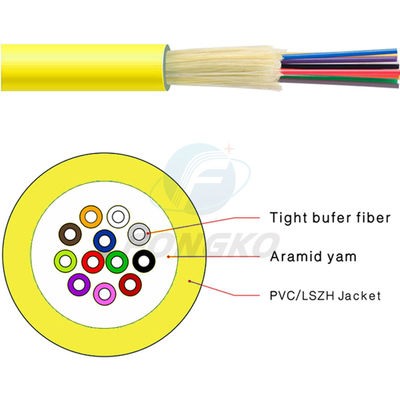

Tight Buffer Fiber Diameter
|
900±50μm
|
|
|
|
|
|
|||||
|
Mechanical Characteristics
|
|
|
|
|
||||
|
Tensile Strength
|
Long Term
|
80N
|
60
|
50
|
||||
|
|
Short Term
|
150N
|
120
|
100
|
||||
|
Crush Resistance
|
Long Term
|
100N/100mm
|
100N/100mm
|
100N/100mm
|
||||
|
|
Short Term
|
500N/100mm
|
500N/100mm
|
500N/100mm
|
||||
|
Bending Radius
|
Dynamic
|
20XD
|
20XD
|
20XD
|
||||
|
|
Static
|
10XD
|
10XD
|
10XD
|
||||
|
Environmental Characteristics
|
|
|
|
Transport Temperature
|
-20℃～﹢60℃
|
|
|
Storage Temperature
|
-20℃～﹢60℃
|
|
|
Installation Temperature
|
-5℃～﹢50℃
|
|
|
Operating Temperature
|
-20℃～﹢60℃
|
|
