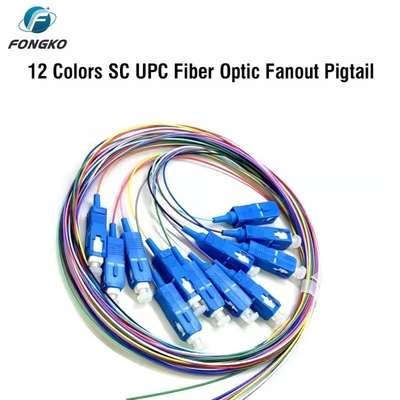

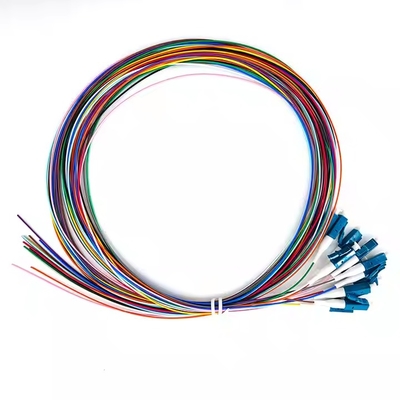

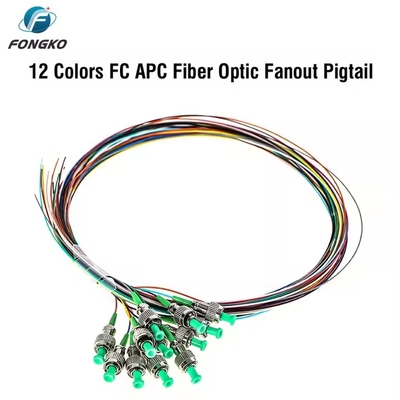

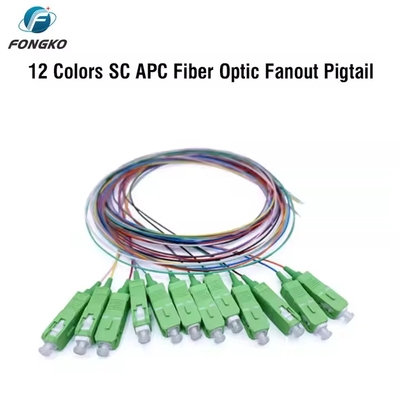

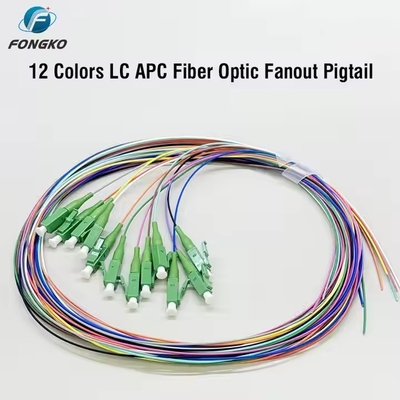

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail
fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail
fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail

Large Image :  fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: FKPIG-003
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail

Description
Product Name: Fiber Optic Fiber Optic Pigtails Fiber Type: G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Fiber Counts: Simplex /Duplex Jacket Material: PVC/LSZH
Working Temperature: 40 ~+75 0C Cable Diameter: 0.9mm
Connector: SC/LC/ST/FC

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail

Fiber Optic Pigtails provide a method to quickly manufacture field communications equipment. They are designed, manufactured and tested according to the protocols and performance specified by industry standards, which will meet your most stringent mechanical and performance specifications.

Features: -Low insertion loss and high return loss;
-Good repeatability and interchangeability;
-PC, UPC, APC polishing; FC, SC, ST, LC, MU connectors;
-Suitable for high-speed, large-capacity fiber transmission systems;
-Provide single-mode/multi-mode patch cords and pigtails;
-Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
-Length/type: according to customer requirements.
parameter
Standard Fiber Optic Cable Assemblies
Fiber Type
SM(G.652/G.657A)
mm(OM1/OM2/OM3)
Jacket Material
LSZH/OFNR/PVC
Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Material
ceramics
Test wavelength
1310 ± 30/1550 ± 30nm
850 ± 30/1300 ± 30nm
Insertion loss (dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return loss (dB)
TIA/EIA-455-107
≥ 45dB(PC/UPC)
≥ 55dB(APC)
≥ 35dB(PC/UPC)
Interchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/simplex/duplex/fan-out patch cord
Operating temperature (°C)
-10~ + 70
Storage temperature (°C)
-40 ~ +85
Package
1 set/pack











fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 0fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 1fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 2fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 3fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 4fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 5



Company Profile

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 6



PACKING&SHIPPING

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 7



Exhibition

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 8



Certifications

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 9



Our factory & advantage

fiber pigtail 12 core 0.9mm G652D PVC fiber pigtail LC FC SC ST UPC APC fiber pigtail 10
