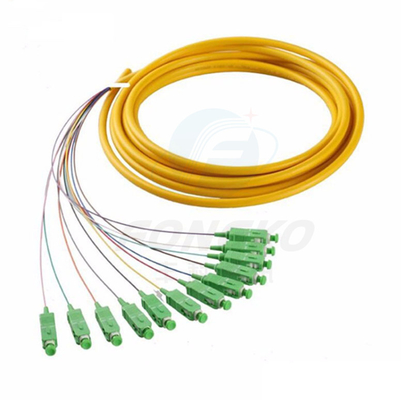

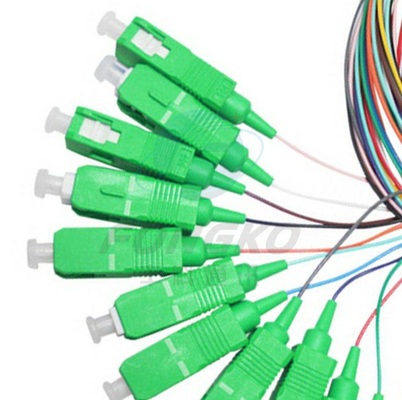

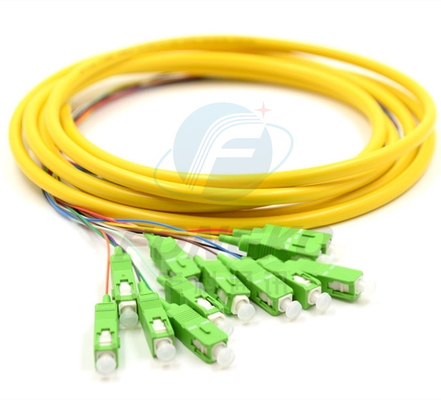

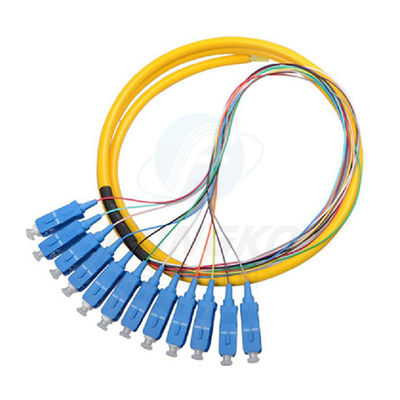

12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable

12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable
12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable 12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable 12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable 12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable

Large Image :  12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: SC PATCH CORD
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable

Description
Product Name: Fiber Optic Pigtails Fiber Type: G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Fiber Counts: Simplex Duplex Jacket Material: PVC, LSZH
Working Temperature: 40 ~+75 0C Cable Diameter: 3.0mm
Connector: MPO
Highlight:

12F FTTH Fiber Optic Pigtails

,

SC APC UPC Fiber Optic Pigtails

,

G.657A1 Fibre Optica Cable

SM G652D G.657A1 G.657A2 SC Fiber Optic Pigtails 12 Colors Fibre Optical Jumper

Features

Low insertion loss
High return loss
Good exchange ability
Good durability
High temperature stability
100% interferometer measurement
Telcordia GR-326-CORE


Application

Fiber Optic Telecommunications
LAN (Local Area Network
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing

Specification

Item
Value
Connector
SC APC/UPC
Operating wavelength
1260-1650nm
Fiber type
G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Cable jacket
LSZH, PVC
Cable type
Simplex, duplex (zipcord), Φ3mm or Φ2mm Φ0.9mm
Cable color
Yellow
Insertion Loss
≤ 0.1dB (Master) ≤ 0.3dB (Standard)
Return Loss
UPC ≥ 55dB, APC ≥ 60dB (typ.65dB)--Single mode;
UPC≥ 35dB (typ.38dB)-Multimode
Operating temperature
-40 ° C to 85 ° C



12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable 012F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable 1
