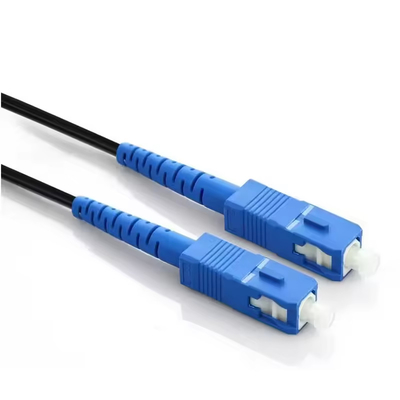

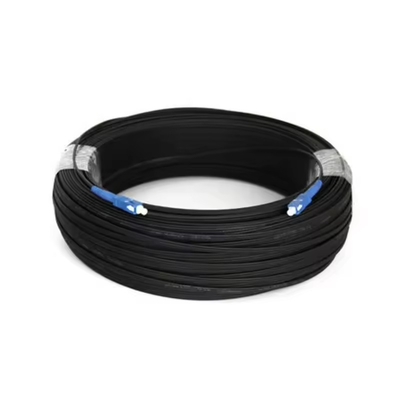

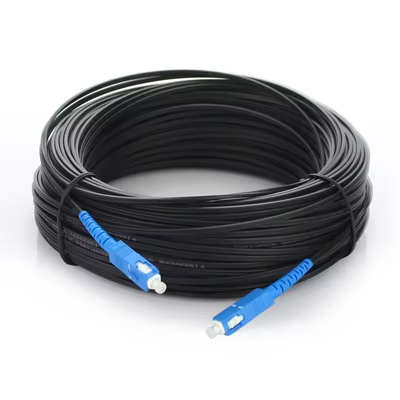

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable
SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable

Large Image :  SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: SC PATCH CORD
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable

Description
Product Name: Fiber Optic Drop Cable Fiber Type: G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Fiber Counts: Simplex Duplex Jacket Material: PVC, LSZH
Working Temperature: 40 ~+75 0C Cable Diameter: 2 - 8.0mm
Connector: LC/SC.ST/FC
Highlight:

G652D Fiber Optic Patch Cord

,

SM Simplex Fiber Optic Patch Cord

Sc-Upc To Sc-Upc Drop Fibra Optica 1 Core Communication Cable Fiber Optic Cable

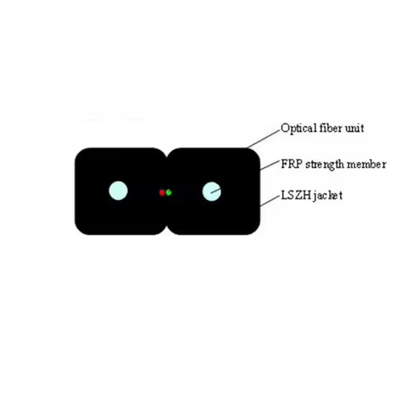

The bow type drop fiber cable used for the access network is to place the optical communication fiber in the center, two parallel fiber reinforce plastic (FRP) or steel wire are placed on both sides, and finally, a black or colored low-smoke halogen-free jacket is extruded into the cable.

Features:

1. Suitable for telecommuniction networks
2. Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,E2000,DIN
3. High durability and reliability
4. Low insertion loss and high return loss
5. Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
6. Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available

Item Value
Connector SC LC ST FC
Operating wavelength 1260- 1650nm
Fiber type G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Cable jacket LSZH
Cable type 2*3mm
Polish manner UPC, APC (8. ) , PC
Cable color Yellow or white
Fiber radius of curvature ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion Loss

≤ 0.3d B (Standard)

Tested by JDS RM 3750
Return Loss

UPC ≥ 55dB, APC ≥ 60d B (typ.65d B)--Si ngle mode

UPC≥ 35d B (typ.38d B)-Multimode

Tested by JDS RM3750
Repeat ability ±0.1d B
Operating temperature -40 ° C to 85 ° C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (APC)

10mm ≤ R ≤ 25mm (Standard)

Apex Offset ≤ 30 μm (Master)

Apex Offset ≤ 50 μm (Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1



SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable 0

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable 1



Company Profile

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable 2

Packaging and Shipping

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable 3

Certificate

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable 4

Our Factory & Advantages

SC UPC APC Fiber Optic Patch Cord SM Simplex G652D G657A Optical Drop Cable 5
