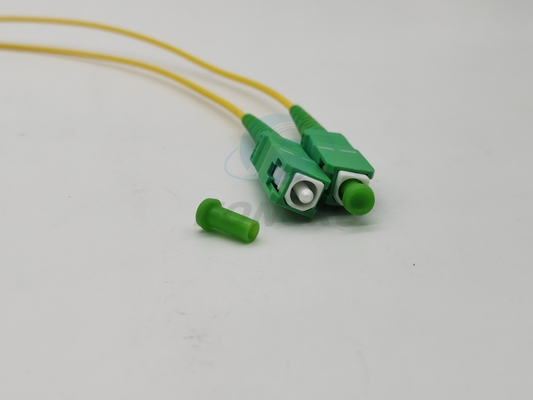

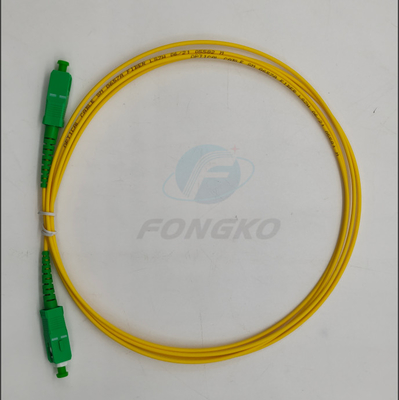

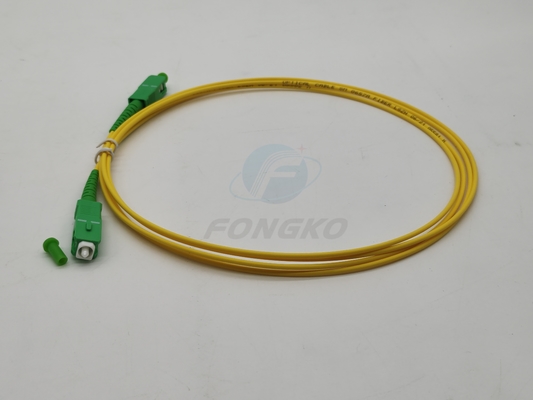

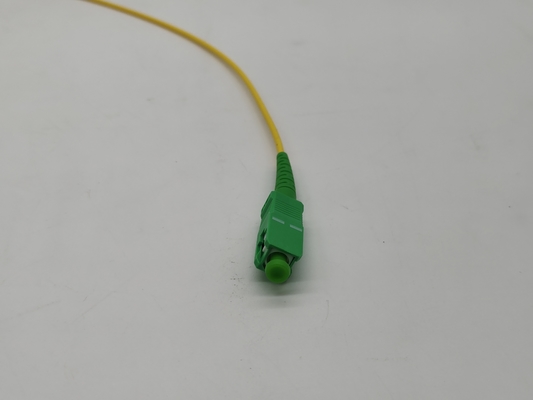

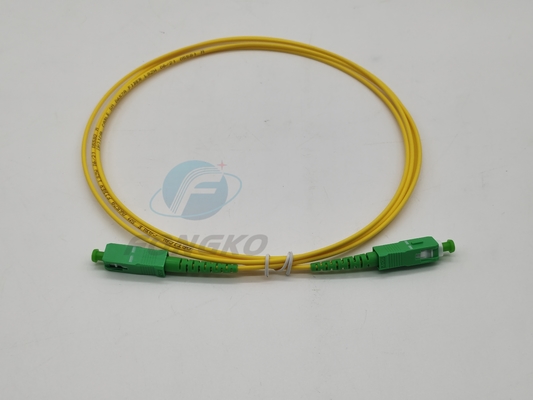

SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable

SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable
SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable

Large Image :  SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: SC PATCH CORD
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable

Description
Product Name: Fiber Optic Fanout Cable Fiber Type: G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Fiber Counts: Simplex Duplex Jacket Material: PVC, LSZH
Working Temperature: 40 ~+75 0C Cable Diameter: 2 - 8.0mm
Connector: LC/SC.ST/FC
Highlight:

G652D G657A Fiber Optic Patch Cord

,

SC/APC Fiber Optic Patch Cord

,

Simplex Fiber Optic Patch Cord

SC Single Mode Multimode Fiber Optic Patch Cord



Patch Coed are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core requirements. All of pigtails are factory inspected and tested, with available interferometer data upon request
.

Feature

Low insertion loss

High return loss

Good exchange ability

Good durability

High temperature stability

100% interferometer measurement

Telcordia GR-326-COR



 Application

 Fiber Optic Telecommunications

 LAN (Local Area Network

 FTTH (Fiber To The Home)

 CATV&CCTV

 High speed transmission systems

 Fiber optic sensing



Item Value
Connector SC LC ST FC
Operating wavelength 1260- 1650nm
Fiber type G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Cable jacket LSZH, PVC
Cable type Simplex, duplex (zipcord), Φ3mm or Φ2mm Φ0.9mm
Polish manner UPC, APC (8. ) , PC
Cable color Yellow or white
Fiber radius of curvature ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion Loss

≤ 0.3d B (Standard)

Tested by JDS RM 3750
Return Loss

UPC ≥ 55dB, APC ≥ 60d B (typ.65d B)--Si ngle mode

UPC≥ 35d B (typ.38d B)-Multimode

Tested by JDS RM3750
Repeat ability ±0.1d B
Operating temperature -40 ° C to 85 ° C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (APC)

10mm ≤ R ≤ 25mm (Standard)

Apex Offset ≤ 30 μm (Master)

Apex Offset ≤ 50 μm (Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1



SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable 0

SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable 1SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable 2

SC/APC To SC/APC Fiber Optic Patch Cord MM SM Simplex 9/125 G652D G657A Optical Cable 3
