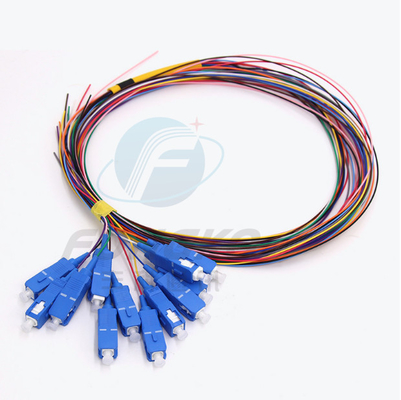

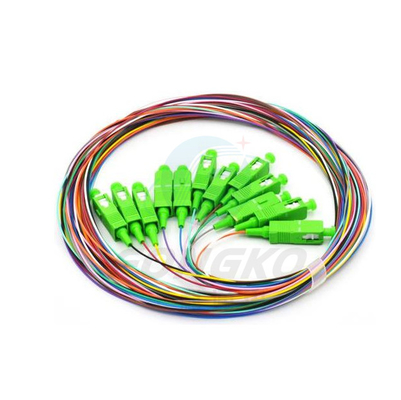

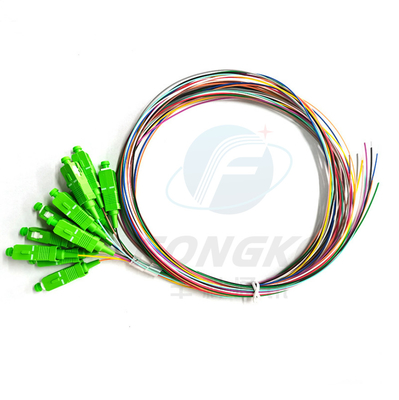

Product Details:
|
| Product Name: | Fiber Optic Pigtails | Fiber Type: | G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc |
|---|---|---|---|
| Fiber Counts: | Simplex Duplex | Jacket Material: | PVC, LSZH |
| Working Temperature: | 40 ~+75 0C | Cable Diameter: | 0.9mm |
| Connector: | LC/SC/ST/FC | ||
| High Light: | G.657A1 Fiber Optic Pigtails,LSZH Jacket Fiber Optic Pigtails |
||
Fiber optic patch cord and pigtail are components to link the equipments and components in fiber optic network. Fiber optic patch cord sometimes is also called fiber optic jumper or fiber optic adapter cables. There are many types of fiber optic patch cord according to different types of fiber optic connector including FC,ST,SC,LC,E2000,MTRJ,MPO,SMA905,SMA906,MU,FDDI,DIN,D4,ESCON,VF45,F3000,LX.5 etc. According to different polished ferrule type in the connector, there are PC, UPC, APC fiber optic patch cord; Generally there are two types of fiber optic patch cords: single mode fiber optic patch cord and multimode fiber optic patch cord. Usually single mode fiber optic patch cord is with 9/125μm fiber glass with yellow jacket, multi mode fiber optic patch cord is with 50/125 or 62.5/125μm fiber glass with orange jacket.
Fiber optic patch cords are with various kinds of cables. Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber cable assemblies, and there are Ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies.
We are providing the broadest choice of fiber optic (cable) patch cords (pigtail, assembly, assemblies, jumper) to the industry including ST optic fiber patch cord, FC fiber optic patch cord, SC fiber optic patch cord, LC fiber optical patch cord, E2000 fiber optical patch cord , MTRJ fiber optic patch cord, MPO fiber optical patch cord, MTP fiber optical patch cord, MU optic fiber patch cord,SMA ( 905 and 906) fiber optical patch cord, FDDI fiber optical patch cord, ESCON fiber optic patch cord, DIN fiber optical patch cord, D4 fiber optic patch cord, VF45 fiber optic patch cord, F3000 fiber optic patch cord and other types of connector fiber patch cord with Ultra-polished (UPC), Angle-Polished (APC) or other polishing requirement.
Feature
Low insertion loss
High return loss
Good exchange ability
Good durability
High temperature stability
100% interferometer measurement
Telcordia GR-326-COR
Application
Fiber Optic Telecommunications
LAN (Local Area Network
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing
| Item | Value |
| Connector | SC LC ST FC |
| Operating wavelength | 1260- 1650nm |
| Fiber type | G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc |
| Cable jacket | LSZH, PVC |
| Cable type | Simplex, duplex (zipcord), Φ3mm or Φ2mm Φ0.9mm |
| Polish manner | UPC, APC (8. ) , PC |
| Cable color | Yellow or white |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss |
≤ 0.3d B (Standard) Tested by JDS RM 3750 |
| Return Loss |
UPC ≥ 55dB, APC ≥ 60d B (typ.65d B)--Si ngle mode UPC≥ 35d B (typ.38d B)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1d B |
| Operating temperature | -40 ° C to 85 ° C |
|
Geometry Requirement (For Single mode) |
Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
