Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m

Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m
Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m

Large Image :  Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: ASU
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m

Description
Product Name: Fiber Optic ASU Cable Fiber Type: G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Fiber Counts: 1-48Cores Jacket Material: PE
Working Temperature: 40 ~+75 0C Cable Diameter: 8.0mm
Highlight:

PE Jacket Adss Fiber Optic Cable

,

100m Adss Fiber Optic Cable

Fiber Optic Cable Mini ADSS ASU Cable Span 80m 100m
This Specification covers the design requirements and performance standard for the supply of optical fibre cable in the industry. Ensures a stable quality control system for our cable products through several programs including ISO 9001.
Cable Description:
FRP as strength member.
PE black outer sheath.
Light weight,small diameter.
Design Life time over 30 years.

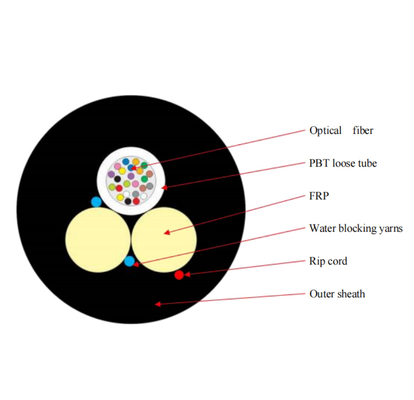

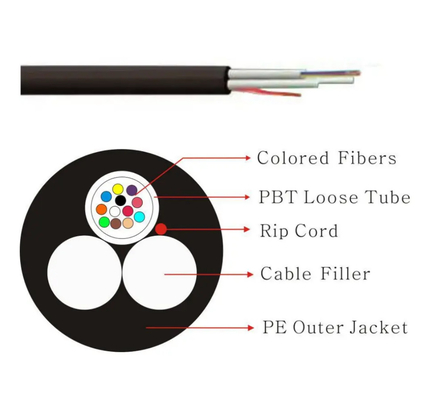

Cable Structure:

Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m 0

SN
Item
Unit
Value
1
No. of fibers
count
12
2
Fibers each tube
count
6
3
Loose tube size
mm
2.0
4
FRP size
mm
2.0
5
Sheath thickness
mm
1.5
6
Cable diameter
mm
7.0
7
Cable weight
kg/km
45
8
Sheath
material
PE
9
Short/Long term tensile
N
1000/300
10
Short/Long term crush
N/100mm
1000/300
11
Min Bending Radius(mm)
Static/Dynamic
10D/20D



Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m 1Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m 2



Mini ASU GYFFY Adss Fiber Optic Cable Self Supporting 12 Cores Span 100m 3
