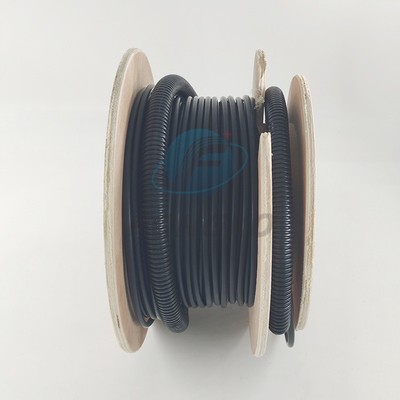

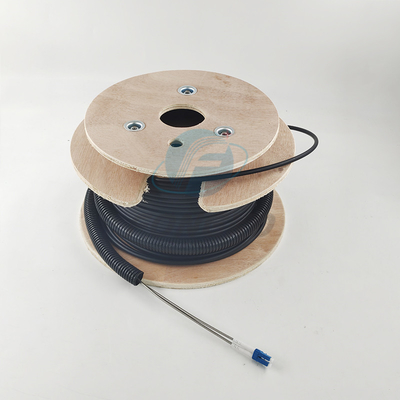

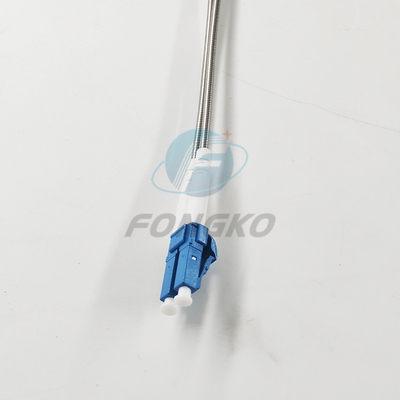

50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch
50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch
50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

Large Image :  50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

Product Details:
Place of Origin: China
Brand Name: FONGKO
Model Number: FKPAT-079
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiatable
Contact Now

50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

Description
Type: Fiber Patch Cord Network: FTTH
Product Name: Fiber Optic DLC Patch Cord Application: Wired LAN, 4g, 3G, FTTA 5G
Product Type: DLC Patch Cord Cable O.D.: 6.0mm Or Customerize
Material: LSZH, PVC Option Insertion Loss:: ≤0.3dB
Return Loss: ≥50dB
High Light:

DLC Optical Cable Assembly

,

50m Optical Cable Assembly

,

GYFJH Pigtail Patch Cord

Product Description

Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable

1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
Fiber Count Cable Dimension
mm		 Cable Weight
kg/km		 Tensile
N		 Crush
N/100mm		 Min. Bend Radius
mm		 Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;



ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125
Operating wavelength
850nm, 1300nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
ITEM PARAMETER
Connector type DLC/UPC
Insertion Loss <=0.3db
Return Loss >=35db
Fiber mode Multi-mode,50/125
Operating wavelength 850nm, 1300nm
Test wavelength 850nm, 1300nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature

-40C ~ +85C



ITEM PARAMETER
Connector type DLC/UPC
Insertion Loss <=0.3db
Return Loss >=35db
Fiber mode Multi-mode,50/125
Operating wavelength 850nm, 1300nm
Test wavelength 850nm, 1300nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C
ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125
Operating wavelength
850nm, 1300nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125
Operating wavelength
850nm, 1300nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
2
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
Fiber Count Cable Dimension
mm		 Cable Weight
kg/km		 Tensile
N		 Crush
N/100mm		 Min. Bend Radius
mm		 Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
2
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 050m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 150m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 2
Company Profile
50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 3

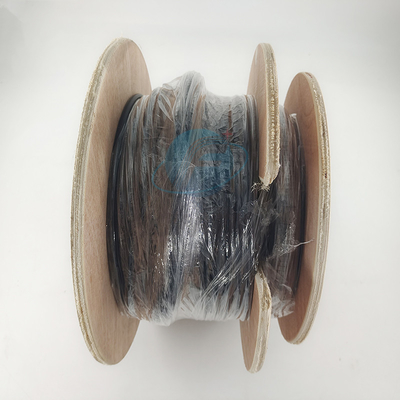

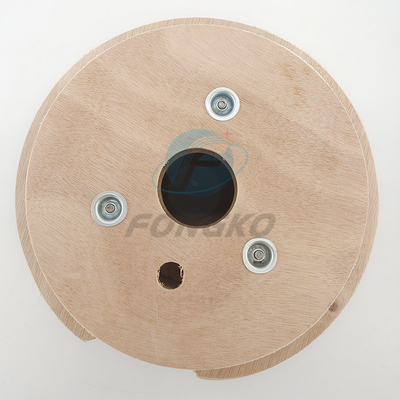

PACKING&SHIPPING
50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch 5
