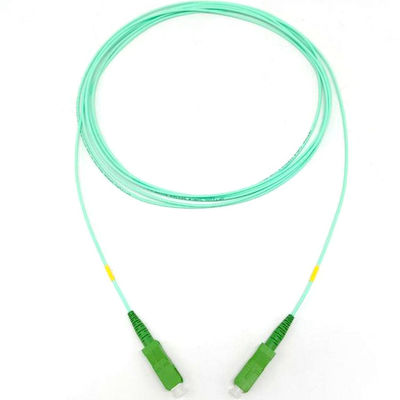

Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper

Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper
Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper

Large Image :  Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper

Product Details:
Place of Origin: China
Brand Name: FONGKO
Model Number: FKPAT-065
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiatable
Contact Now

Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper

Description
Type: Fiber Optic Patch Cord, Fiber Opticcal Patchcord Use: Other, FTTH
Warranty Time: 3years Network: Other, Wireless Lan, Wired LAN, GPRS, Wifi, 4g, 3G
Product Name: Fiber Optic Patch Cord Application: Telecommunications
Lenght: 3m And Customized Color: Aqua Or Others
Pigtail Connector: Single Mode Coating Material: LSZH/PVC
High Light:

Ftth Optic Fiber Patch Cord

,

1.6mm Optic Fiber Patch Cord

,

1M Pigtail Patch Cord

Product Description
SC /APC-SC/APC Fiber Patch Cable Single mode 9/125 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial. It supports video, data and voice services.

Features:
1. Simplex or duplex or multi fiber assemblies
2. Riser or Plenum rated, LSZH and RoHS cables available
3. Low insertion loss, IEC, TIA/EIA, Telcordia compliant
4. Custom fiber optic cable lengths and jacket colors
5. Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode 0.9 / 1.6 / 2.0 / 3.0 / mm outer diameter fiber optic cables PC, UPC, and APC polish types
6. Good packing, competitive prices and very fast delivery
7. 100% geometry test anc IEC cleaning test are available
8. OEM service is available

Connector Type
SC to SC
Polish Type
APC to APC
Fiber Mode
9/125μm
Wavelength
1310/1550nm
Fiber Count
SInglemode
Fiber Grade
G.657.A1(Compatible with G.652.D)
Insertion Loss
≤0.3dB
Return Loss
≥60dB
Minimum Bend Radius
10mm
Cable Diameter
1.6mm
Pull-out Force
100N
Durability
500 Cycles
Cable Jacket
PVC/LSZH
Jacket Color
Aqua Blue
Operating Temperature
-40 to 85°C
Storage Temperature
-45 to 85°C
Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper 0Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper 1





Company Profile
Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper 8
PACKING&SHIPPING
Ftth 1.6mm 1M Length Optic Fiber Patch Cord Aqua Blue Cable Jumper 10
