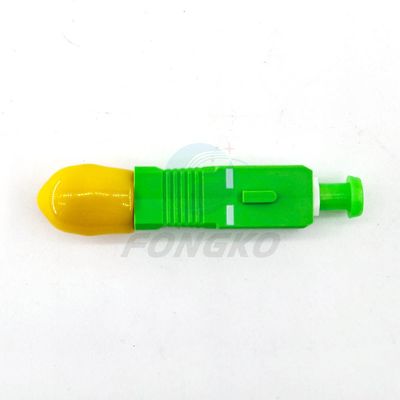

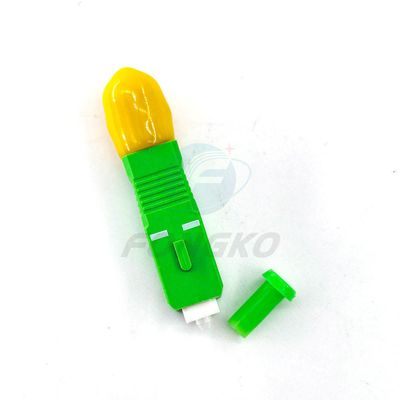

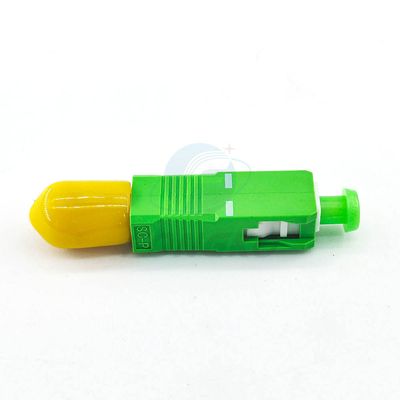

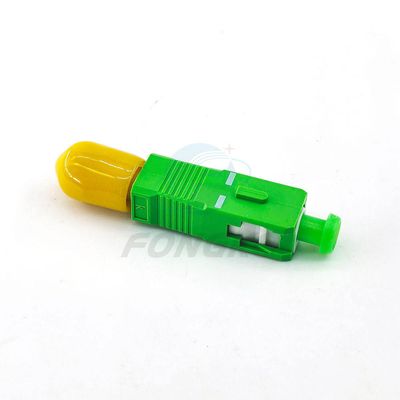

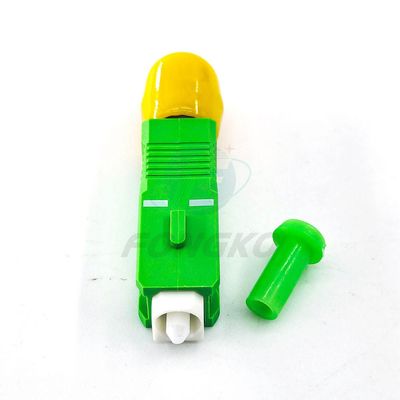

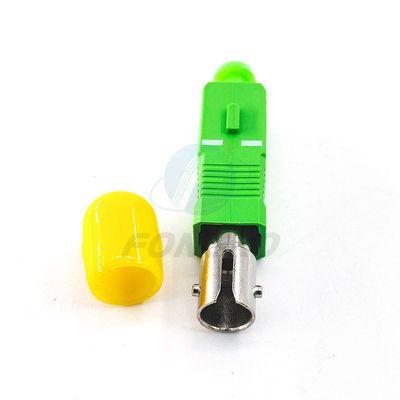

Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter

Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter
Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter
Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter

Large Image :  Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: RoHs, SGS, ISO
Model Number: FKADP-035
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter

Description
Insertion Loss: ≤0.2db Product Name: Fiber Optic Single-mode Hybrid Adapter
Fiber Mode: Single & Multi Mode Wavelength: 1310/1550nm
Condition: 100% OEM Compatible Usage Scenarios: Ftth
Highlight:

ST/APC to SC/APC fiber adapter

,

single mode fiber optic adapter

,

simplex hybrid fiber adapter

Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter

The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected, Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types as needed.
Technical parameter Insertion loss Single mode (sm-9 / 25) ≤ 0.3dB Multimode (mm-50 / 125, mm-62.5 / 125) ≤ 0.3dB Return loss: PC ≥ 45dB; UPC≥50dB; APC≥60dB Consistency: 0.1dB Operating temperature: - 40 ℃ ~ + 75 ℃ Usage times: ≥ 1000 times Product

features
1. Convert SC optical fiber connector into SC type optical fiber connector
2. Convert LC type optical fiber interface to LC type optical fiber interface.
3. The male and female terminals shall comply with their corresponding IEC international standards.
4. Embedded optical fiber types such as 9 / 125, 62.5/125 and 50 / 125 can be selected.
5. It can solve the butt joint scheme between UPC and APC with two different shape end faces.
6. The adapter structure is convenient for connection and use.
7. Good interchangeability and reliability.
8. Low insertion loss and high return loss.

User Instructions
1. Communication optical fiber is made of quartz glass, which is easy to break, fragile, and sensitive to dirt. It must be
waterproof, drop-proof, and stain-resistant.
2. When connecting the optical fiber end faces, be careful not to use excessive force.
3. When cleaning the optical fiber end face, you must use a soft cloth or a dedicated optical fiber cleaning tool.
4. High-quality products also require professional and skilled operators to use them reasonably to ensure that the products can be used longer and more times.

Product Applications:
1. Interface conversion for fiber optic instruments, fiber optic communication equipment, red light pens, etc.
2. Fiber optic connector conversion.
3. Fiber optic data testing.
4. Fiber optic data transmission.
5. Telecommunications access, broadcast and television engineering, and network engineering.

country of origin
China
type
Fiber optic adapter
use
In FTTx network system
Product Name
ST/APC female to SC/APC male simplex single-mode hybrid adapter
Combination durability (500 cycles)
≤ 0.20dB
Temperature stability
≤ 0.20dB
Operating temperature
-40 ~ 85℃
Storage temperature
-40 ~ 85℃









Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter 0Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter 1Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter 2Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter 3Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter 4Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter 5
