Product Details:
|
| Product Name: | Fiber Optic Adapter | Fiber Type: | Male, Female |
|---|---|---|---|
| Fiber Counts: | Simplex Duplex | Material: | Metal; Plastic |
| Working Temperature: | 40 ~+75 0C | Connector: | LC/SC/ST/FC |
| High Light: | Single Mode Hybrid Fiber Optic Adapter,FTTH Hybrid Fiber Optic Adapter |
||

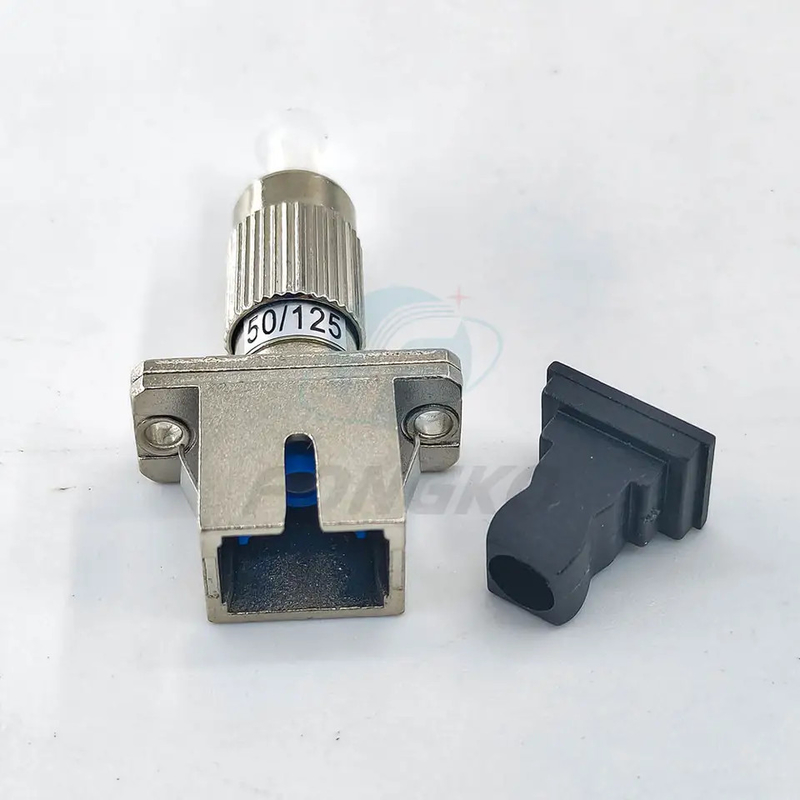

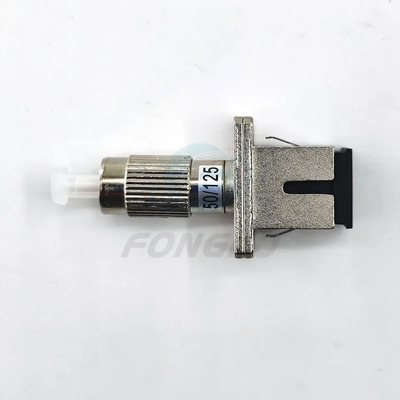

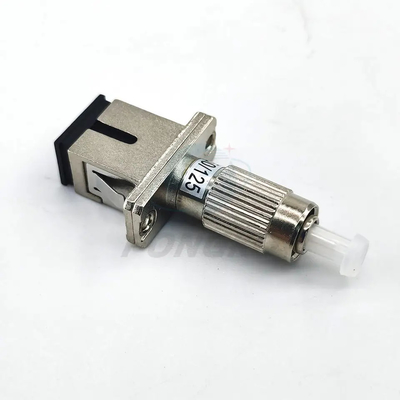

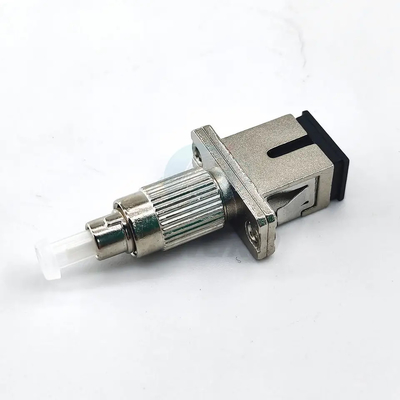

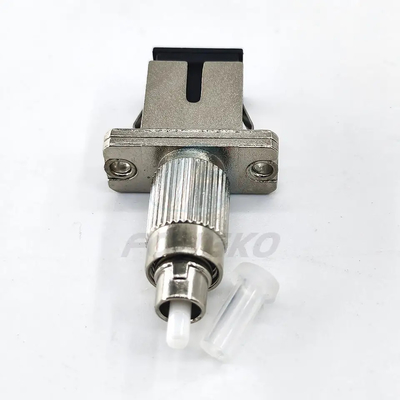

SC Female to FC Male Fiber Optic Patch Adapter
Insertion loss:
Single mode (sm-9 / 25) ≤ 0.3dB
Multimode (mm-50 / 125, mm-62.5 / 125) ≤ 0.3dB
Return loss:
PC ≥ 45dB; UPC≥50dB; APC≥60dB
Consistency: 0.1dB
Operating temperature: - 40 ℃ ~ + 75 ℃
Usage times: ≥ 1000 times
Characteristics
1. Using high precision ceramic ferrule
2. Low insertion loss and high return loss
3. Excellent stability and high repetition
4. Referring to NTT, IEC, GR326 standard
5. 100% Optic test (Insertion Loss & Return Loss)
