12 24 48 Core Ftth Distribution Box SC LC FC ST

12 24 48 Core Ftth Distribution Box SC LC FC ST
12 24 48 Core Ftth Distribution Box SC LC FC ST 12 24 48 Core Ftth Distribution Box SC LC FC ST 12 24 48 Core Ftth Distribution Box SC LC FC ST 12 24 48 Core Ftth Distribution Box SC LC FC ST 12 24 48 Core Ftth Distribution Box SC LC FC ST 12 24 48 Core Ftth Distribution Box SC LC FC ST 12 24 48 Core Ftth Distribution Box SC LC FC ST

Large Image :  12 24 48 Core Ftth Distribution Box SC LC FC ST

Product Details:
Place of Origin: China
Brand Name: Fongko
Model Number: FKTER-103
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiatable
Contact Now

12 24 48 Core Ftth Distribution Box SC LC FC ST

Description
Type: 6 Port Metal DIN Terminal Box Network: FTTH FTTX Network
Product Name: DIN Box Material: Metal
Waterproof: IP55 Working Temperature: -40℃~+85℃
Relative Humidity: ≤85%(+30℃) Size(mm): 156*140*70
Color: Grey Max Capacity: 6 Ports
High Light:

48 Core Ftth Distribution Box

,

SC Ftth Distribution Box

Product Description
FTTH 12 24 48 Core SC LC FC ST Optical Terminal Din Rail Mount Box Fiber Optic Patch Panel

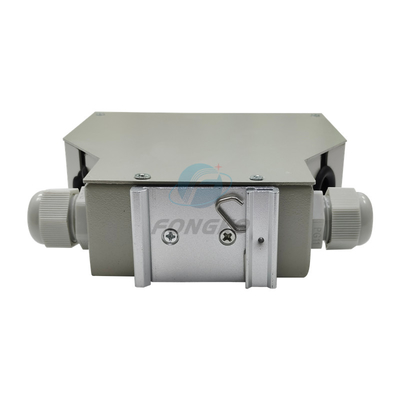

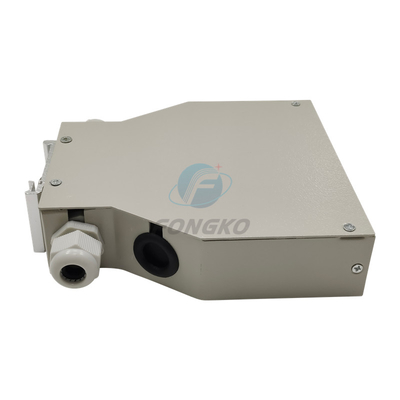

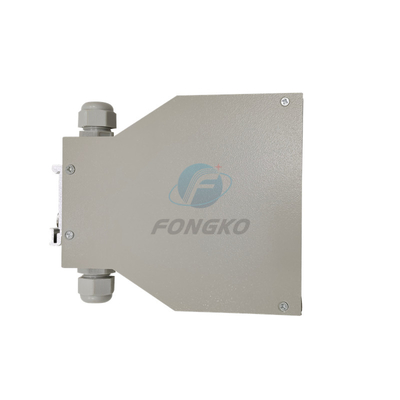

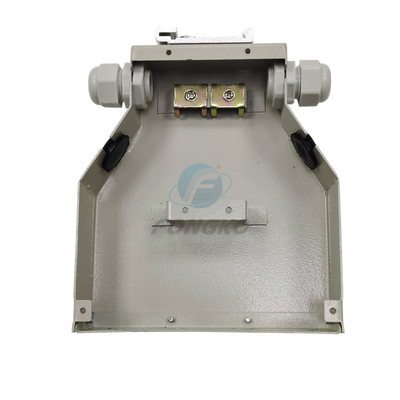

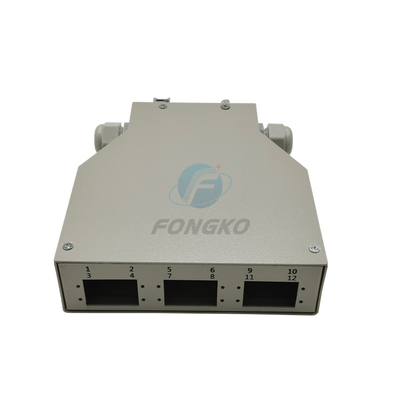

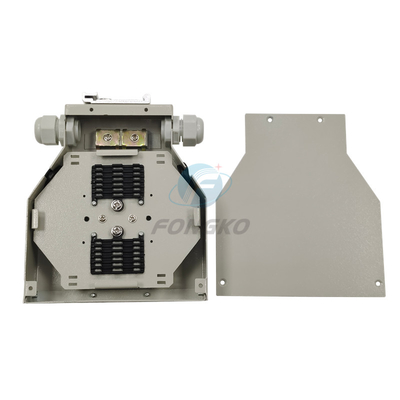

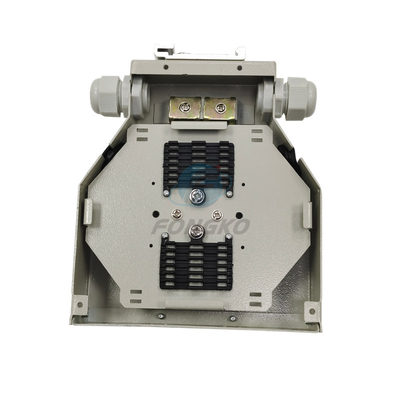

Din-rail Mount Fiber Splice Box are designed for either to support termination or fusion splicing of the fibers. The Din-rail
Splice unit can be loaded with a variety of adapters like ST, SC and LC. This Din-rail Splice Box has compact and ruggedly
designed, made of aluminum (powder coated), and contains a clip for DIN RAIL mounting.DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for
mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features

Suitable for industrial applications.
Cold-roll steel, electrostatic painting
Suitable for different adapters: FC, SC, ST, LC …
Max. 8pcs adapters can be loaded

Applications

Internal application
Data Center or telecommunications networks
For use in Multi-dwelling units or demarcation points within a network
Used in FTTH, Telecommunications, CATV
Suitable for Pigtail, ribbon and bunch cable connect distribution
Used for wall-mounted applications
Product name
Rail Fiber Optic Patch Panel DIN Box
Color
Grey
Port
6 adapter
Adapter
SC/FC/ST/LC Optional




12 24 48 Core Ftth Distribution Box SC LC FC ST 012 24 48 Core Ftth Distribution Box SC LC FC ST 1
