Product Details:
|
| Name: | Fiber Optic Distribution Box | Material: | PC+ABS |
|---|---|---|---|
| Waterproof: | IP66 | Fiber Capacity: | 4/8/16 For Optional |
| Max Capacity: | 16 Ports SC | Connector Type: | Fiber Transmission |
| Application: | FTTH FTTB FTTC | Color: | Black |
| High Light: | Breakout Fiber Optic Termination Box,Breakout Fiber Optic Termination Box,CE FTTH Terminal Box |
||
1. Description

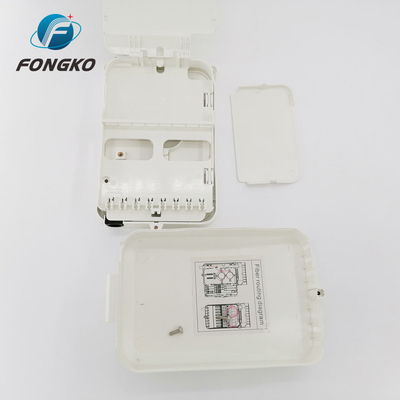

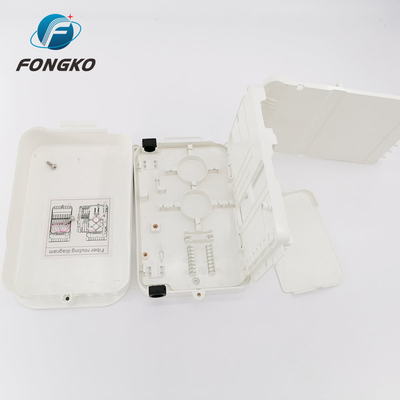

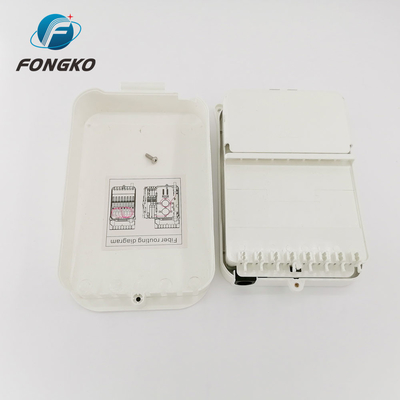

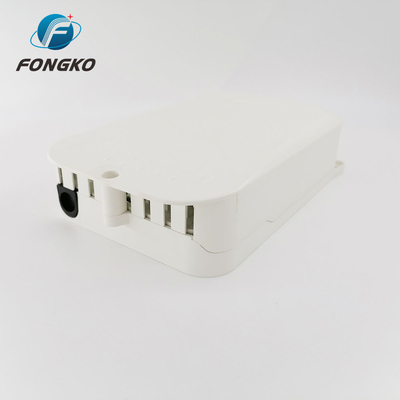

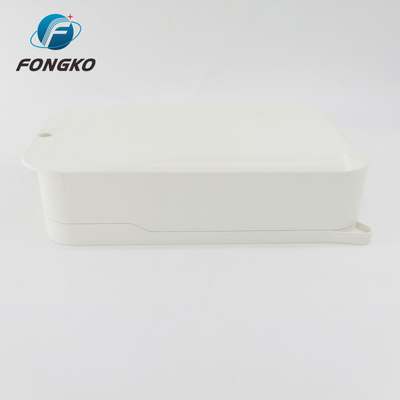

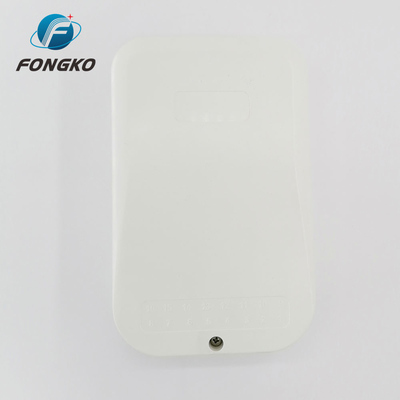

FK-FAT-16T fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It in tegrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
2. Features
Different installation version supported
Water-proof design with IP-55 Protection level.
Integrated with splice cassette and cable management rods.Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
2:1*8 or 1:1*16 Splitter can be installed as an option.
Efficient cable management.

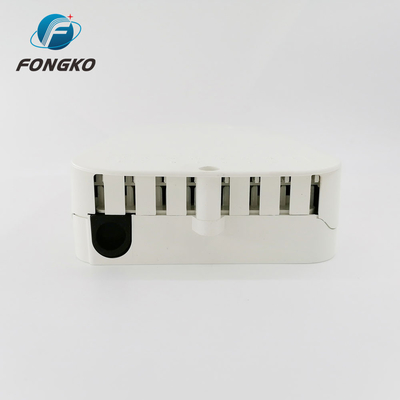

16 ports cable entrance for drop cable.
| Model | FK-FAT-16T |
| Dimension (mm) | 220*140*55 |
| Cable diameter (mm) | Max.12mm |
| Cable port | 16pcs 2*3mm drop cable ports |
| Max. Split ratio | 2pcs 1x8 or 1*16 (SC) PLC splitter |
| Splice tray capacity | 16 cores |
| Max. Splice tray | 1pc |
| Weight | 0.6kg |
3.Parameters
(1) Material: PC +ABS
(2) Size(mm) :220*140*55
(3) Max Capacity: SC16 Ports + PLC 2:1x8 or 1:1*16(SC)
