Product Details:
|
| Name: | Fiber Optic Distribution Box | Material: | PC+ABS |
|---|---|---|---|
| Waterproof: | IP66 | Fiber Capacity: | 4/8/16 For Optional |
| Max Capacity: | 16 Ports SC | Connector Type: | Fiber Transmission |
| Application: | FTTH FTTB FTTC | Color: | Black |
| High Light: | FTTB Fiber Optic Termination Box,FTTC Fiber Optic Termination Box,Nap Splitter 1x8 |
||
Description

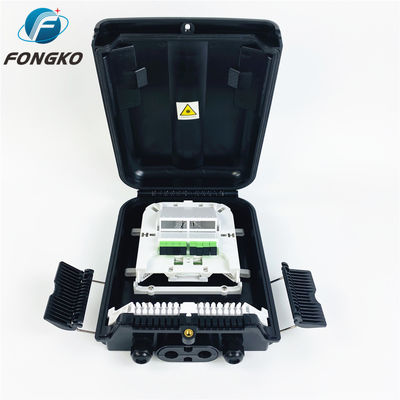

FK-A2-16T series optical cable terminal box is used for loop terminal optical fiber distribution, with the functions of fiber
splicing, terminal and distribution. The input is for ordinary optical cable, and output for Pre-assembled single core FTTH drop cable.
Features
(1) Total enclosed structure.
(2) Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65/66.
(3) Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
(4) Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter inst
allation,easy maintenance.
(5) Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
(6) Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.
| Configuration table | Wall mounting | Pole mounting installation |
| Model | 16 core | 16 core |
| Size(mm) | 290*210*82 | 290*210*82 |
| Material | PC/ABS | PC/ABS |
| Color | black | black |
| Inner box size(mm) | 300*220*95 | 300*220*115 |
| Individual weight(kg) | 1.3 | 1.4 |
| Outer box size(mm) | 500*310*460 | 600*310*460 |
| Gross weight(kg) | 13.7 | 14.7 |
| Outer box capacity(PCS) | 10 | 10 |
| Into the largest cable diameter(mm) | 12 |
12 |
Parameters
(1) Environmental requirement
Working temperature:-40℃～+85℃ Relative humidity:≤85%(+30℃) Atmospheric pressure:70KPa～106Kpa
(2) Main technical datasheet Insertion loss:≤0.15dB
UPC return loss:≥50dB APC return loss:≥60dB
(3) Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104 MΩ/500V(DC)；IR≥2´104
MΩ/500V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no
flashover；U≥3000V
