Product Details:
|
Product Name: | Optical Fiber Hybrid Adapter | Insertion Loss: | IL<0.3db |
---|---|---|---|
Color: | Silver-Grey | Storage Temperature: | -40 ~ 85℃ |
Key Words: | LC To ST Female To Male Multimode | Application: | FTTH Network |
High Light: | FC to LC Fiber Optic Converter,Hybrid Adapter Fiber Optic Converter,50/125 Fiber Optic Adapter |

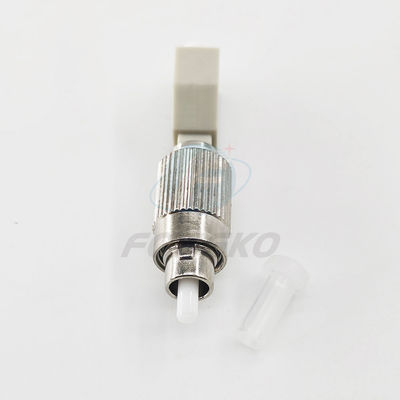

Wholesale FC Male to LC Female 50/125 Fiber Optic Converter Hybrid Adapter
The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected
Items | Single mode | Multimode |
Insertion Loss | ≤0.3dB | |
Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
Sleeve Material | Ceramic | |
Durability | 1000times | |
Working Temperature | -40~+75℃ |
