Product Details:
|
| Product Name: | Optical Fiber Hybrid Adapter | Insertion Loss: | IL<0.3db |
|---|---|---|---|
| Color: | Silver-Blue | Storage Temperature: | -40 ~ 85℃ |
| Key Words: | ST Female To LC/UPC Male Convert Adapter | Application: | FTTH Network |
| Highlight: | FC to ST Fiber Hybrid Adapter,50/125 Fiber Hybrid Adapter,Hybrid Fiber Optic Adapter |
||

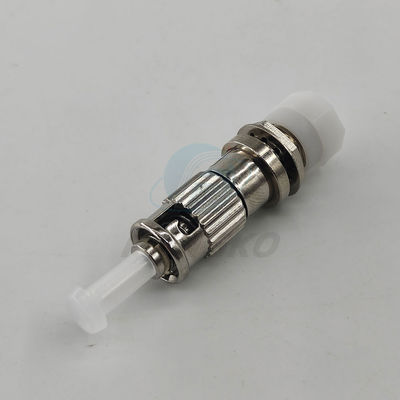

Manufacturer 50/125 FC Female to ST Male Fiber Optical Conversion Coupler
Male to female hybrid adapter is integrated by pre-polished fiber and ferrule. It’s tiny and stable, and widely used in fiber optic test equipment and emergency maintenance.The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected.
Model:Fiber Optical Hybrid
Insertion loss ≤0.3dB (for switching Adapter)
Mating cycles (1000) ≤0.3dB,
Easy transfer without carrying jumpers
Easy to carry
Low insertion loss and high return loss.
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
