Product Details:
|
| Product Name: | Optical Fiber Hybrid Adapter | Insertion Loss: | IL<0.3db |
|---|---|---|---|
| Color: | Green | Storage Temperature: | -40 ~ 85℃ |
| Key Words: | SC Female To LC Male Multimode 62.5/125 Fiber Optical Hybrid Coupler | Application: | FTTH Network |
| High Light: | Singlemode Fiber Hybrid Adapter,SC To LC Fiber Hybrid Adapter,62.5/125 Fiber Optic Adapter |
||

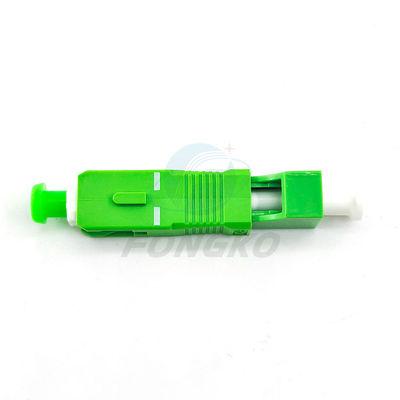

Wholesales FONGKO SC Female to LC Male Singlemode 62.5/125 Fiber Optical Hybrid Coupler
SC Female to LC Male Singlemode 62.5/125 fiber optical hybrid adapter is integrated by pre-polished fiber and ferrule. It’s tiny and stable, and widely used in fiber optic test equipment and emergency maintenance.The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected.
Model:Fiber Optical Hybrid
Insertion loss ≤0.3dB (for switching Adapter)
Mating cycles (1000) ≤0.3dB,
Easy transfer without carrying jumpers
Easy to carry
Low insertion loss and high return loss.
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
