Product Details:
|
| Product Name: | Optical Fiber Hybrid Adapter | Insertion Loss: | IL<0.3db |
|---|---|---|---|
| Color: | Grey | Storage Temperature: | -40 ~ 85℃ |
| Key Words: | 62.5/125 SC Male To LC Female Fiber Optical Conversion Adapter | Application: | FTTH Network |
| Highlight: | FTTH Fiber Optical Adapter,Fiber Optical Adapter 62.5/125,0.3db Fiber Optic Adapter |
||

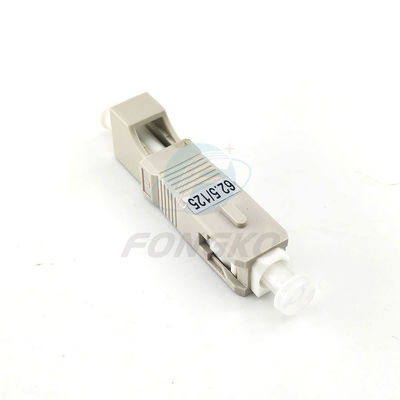

FTTH Network Multimode 62.5/125 SC Male to LC Female Fiber Optical Conversion Adapter
62.5/125 SC Male to LC Female Fiber Optical Conversion Adapter is integrated by pre-polished fiber and ferrule. It’s tiny and stable, and widely used in fiber optic test equipment and emergency maintenance.The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected.
Model: SC(M)-LC(F) Male to Female OM3 Fiber Optical Hybrid
Insertion loss ≤0.3dB (for switching Adapter)
Mating cycles (1000) ≤0.3dB,
Easy transfer without carrying jumpers
Easy to carry
Low insertion loss and high return loss.
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
