Product Details:
|
| Product Name: | Optical Fiber Hybrid Adapter | Insertion Loss: | IL<0.3db |
|---|---|---|---|
| Color: | Gray | Storage Temperature: | -40 ~ 85℃ |
| Key Words: | ST/UPC Female To SC/UPC Fiber Optic Hybrid Adapter | Application: | FTTH Network |
| High Light: | Multimode Female to Male Adapter,50/125 Female to Male Adapter,SC ST Fiber Optic Hybrid Adapter |
||

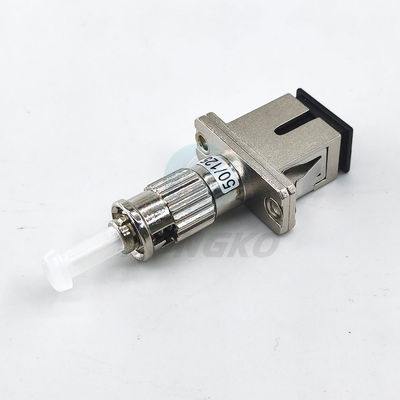

Factory Supply Multi mode Metal 50/125 SC to ST Female to Male Adapter Fiber Optic Hybrid Adapter
The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected, Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types as needed.
* Single-mode ceramic earthenware
* Model: ST male-SC female
* Insertion loss ≤0.3dB (for switching Adapter)
* Mating cycles (1000) ≤0.3dB,
* Temperature range: -40 ℃ ~ + 80 ℃
* Package: 1piece/bag
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
