Product Details:
|
| Product Name: | Optical Fiber Conversion Adapter | Insertion Loss: | IL<0.3db |
|---|---|---|---|
| Color: | Blue | Storage Temperature: | -40 ~ 85℃ |
| Key Words: | ST/UPC Female To SC/UPC Male Hybrid Adapter | Application: | FTTH Network |
| High Light: | Hybrid Simplex Fiber Optical Adapter,Singlemode Fiber Optical Adapter,SC UPC Male Fiber Optic Adapter |
||

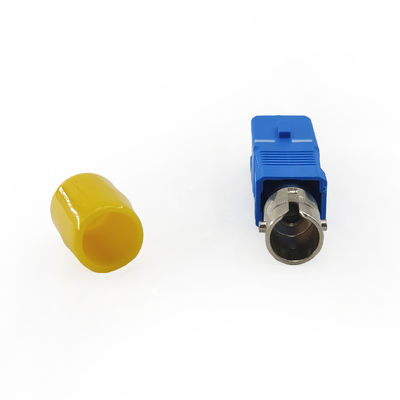

Wholesales Fiber Optical Simplex Single mode ST/UPC Female to SC/UPC Male Hybrid Adapter
The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected, Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types as needed.
It can solve the butt joint scheme between UPC and APC with two different shape end faces.
The adapter structure is convenient for connection and use.
Good interchangeability and reliability.
Low insertion loss and high return loss.
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
