Product Details:
|
| Max Capacity: | SC 2 Cores ; LC 4 Cores | Size: | 102*80*25mm |
|---|---|---|---|
| Scope Of Application: | 3.0x2.0mm Drop Cable Or Indoor Cable | Material: | ABS |
| Color: | White | Mounting Type: | Wall Mounting |
| High Light: | ABS FTTH Fiber Optic Termination Box,LC Adaptor Fiber Optical Rossette Box,2 Cores Fiber Optical Rossette Box |
||

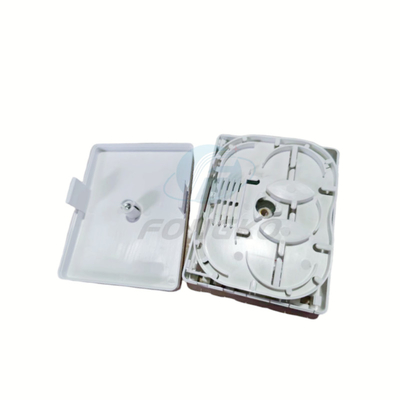

FTTH Box 2 Cores Wall Mounting Customer Box SC LC Coupler Fiber Access Terminal Box
This fiber rossette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
1. Dust-proof design with IP-45 Protection level.
2. Integrated with splice cassette and cable management rods.
3. Manage fibers in a reasonable fiber radius condition.
4. Easy to maintain and extend the capacity.
5. Suitable for the fusion splice or mechanical splice.
6. Embedded type surface, easy for installation and removal.
7. 2 ports cable entrance for patch cable.
| Model | FKTER-86L |
| Max Capacity | SC 2 Cores ; LC 4 Cores |
| Size | 102*80*25mm |
| Scope of application | 3.0x2.0mm drop cable or indoor cable |
| Material | ABS |
| Color | White |
| Mounting Type | Wall Mounting |
| Flame Retardant | Yes or not, on customer request |
