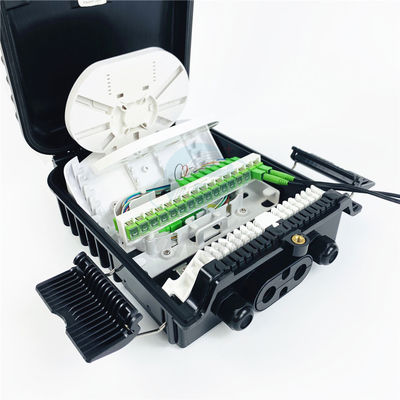

Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core
Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core
Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

Large Image :  Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

Product Details:
Place of Origin: China
Brand Name: FONGKO
Model Number: FK-A2-16T
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiatable
Contact Now

Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

Description
Type: Fiber Optic Distribution Box Network: FTTH FTTX
Product Name: Fiber Optical Splice Closure Material:: PC+ABS
Waterproof: IP65 Working Temperature: -40℃~+85℃
Relative Humidity: ≤85%(+30℃) Insertion Loss: ≤0.15dB
UPC Return Loss: ≥50dB APC Return Loss: ≥60dB
Size(mm): 290*210*82 Color: Black
Highlight:

Waterproof ftth splitter box

,

16 core ftth splitter box

,

Waterproof ftth fat box

Product Description

1, Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2, Features

(1) Total enclosed structure.
(2) Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65/66.
(3) Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
(4) Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter inst
allation,easy maintenance.
(5) Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
(6) Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.

3, Specification

(1) Environmental requirement
Working temperature:-40℃～+85℃ Relative humidity:≤85%(+30℃) Atmospheric pressure:70KPa～106Kpa
(2) Main technical datasheet Insertion loss:≤0.15dB
UPC return loss:≥50dB APC return loss:≥60dB
(3) Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104 MΩ/500V(DC)；IR≥2´104 MΩ/500V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V
Configuration table Wall mounting Pole mounting installation
Model 16 core 16 core
Size(mm) 290*210*82 290*210*82
Material PC/ABS PC/ABS
Color black black
Inner box size(mm) 300*220*95 300*220*115
Individual weight(kg) 1.3 1.4
Outer box size(mm) 500*310*460 600*310*460
Gross weight(kg) 13.7 14.7
Outer box capacity(PCS) 10 10
Into the largest cable diameter(mm)
12
12
