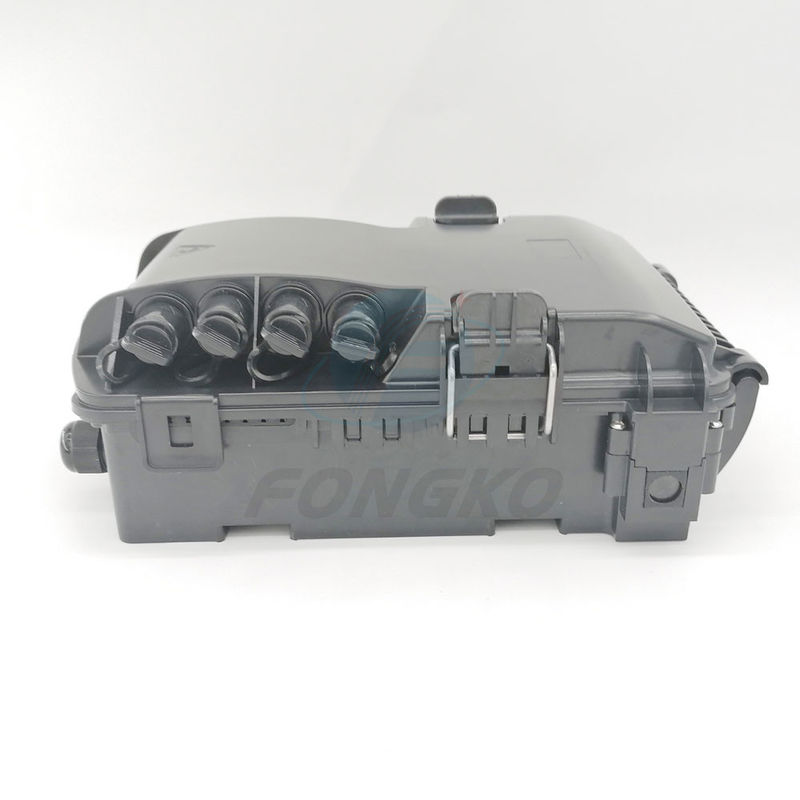

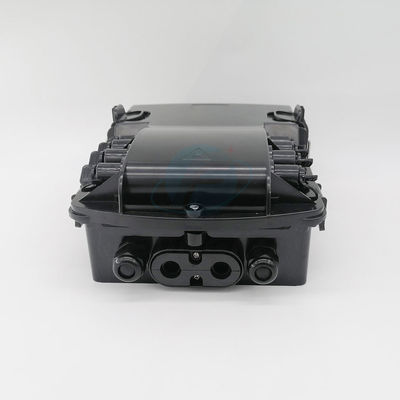

Outdoor Fiber optic FTTH Terminal Box Splicing Of 96 Fibers

Large Image : Outdoor Fiber optic FTTH Terminal Box Splicing Of 96 Fibers

Product Details:

Place of Origin:	China
Brand Name:	Fongko
Model Number:	FK58-F

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiatable

Contact Now

Outdoor Fiber optic FTTH Terminal Box Splicing Of 96 Fibers

Description

Type:	Fiber Terminal Box	Network:	FTTH FTTX
Product Name:	Pre-connection Fiber Terminal Box	Material::	PC+ABS
Waterproof:	IP66	Working Temperature:	-5℃ ~ +45℃
Relative Humidity:	≤95%	Insertion Loss:	≤0.3dB
UPC Return Loss:	≥50dB	APC Return Loss:	≥60dB
Size(mm):	293221136mm	Color:	Black
Highlight:	Fiber FTTH Terminal Box , Outdoor FTTH Terminal Box , Outdoor ftth fiber optic box

Product Description

1,Description

FK58-F series optical cable terminal box is used for loop terminal optical fiber distribution, with the functions of fiber
splicing, terminal and distribution. The input is for ordinary optical cable, and output for Pre-assembled single core FTTH drop cable.

2,Features

Different installation version supported
1. Pole installation
2. Wall mounted installation
3. Aerial installation
4. It can be equipped with optical fiber storage frame according to request.
The bottom of the pole mounting box is equipped with two hoop mounting grooves, which is easy to install with the pole, stable and
reliable.

3,Parameters

Working temperature: -5℃ ~ +45℃
Storage temperature: -25℃ ~ +55℃
Relative humidity:<95%
Atmospheric pressure: 70KPa ~ 106KPa
Fiber Optic Connector Indicators
Fiber optic connector durability: > 1000 times.
Fiber optic connector IL: <0.3dB
Which includes IL and interchangeability, repeatability, temperature change and other additional losses, in which the IL is not more than 0.2dB.
Return loss
UPC connector ≥50dB
APC connector ≥60dB
Max. Capacity: 18 Fibers
Protection Level: IP66
Material: ABS+PC.
Dimension: 293*221*136mm
Weight (include accessories) 1.5kgs
It meets the direct fusion of 16 fiber optic cables,
