16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network

16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network
16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network

Large Image :  16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network

Product Details:
Place of Origin: China
Brand Name: Fongko
Model Number: FK-FAT-16T
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiatable

16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network

Description
Type: Fiber Optic Distribution Box Network: FTTH FTTX
Product Name: Fiber Optical Terminal Box Material:: PC+ABS
Waterproof: IP55 Working Temperature: -40℃~+85℃
Relative Humidity: ≤85%(+30℃) Insertion Loss: ≤0.15dB
Size(mm): 220*140*55 Color: White
Weight: 0.6kg Max Capacity: SC16Ports/PLC2:1x8 Or 1;1x16(SC)
High Light:

IP55 Wall Mounted Fibre Termination Box

,

FTTX Wall Mounted Fibre Termination Box

,

fiber optic wall mount termination box

Product Description

1,Description

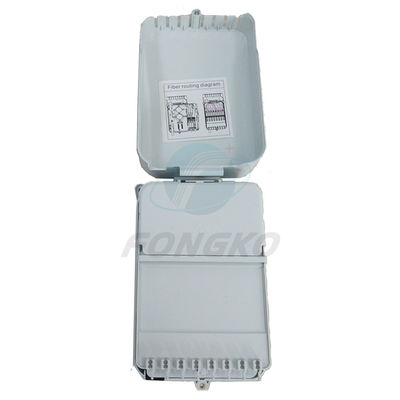

FK-FAT-16T fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It in tegrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

2,Features

Water-proof design with IP-55 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
2:1*8 or 1:1*16 Splitter can be installed as an option.
Efficient cable management.
16 ports cable entrance for drop cable.

3,Configuration

(1) Material: PC +ABS
(2) Size(mm) :220*140*55
(3) Max Capacity: SC16 Ports + PLC 2:1x8 or 1:1*16(SC)







16 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 716 Cores White IP55 Fiber Optic Wall Mounted Fibre Termination Box For FTTX Network 8
