Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer

Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer

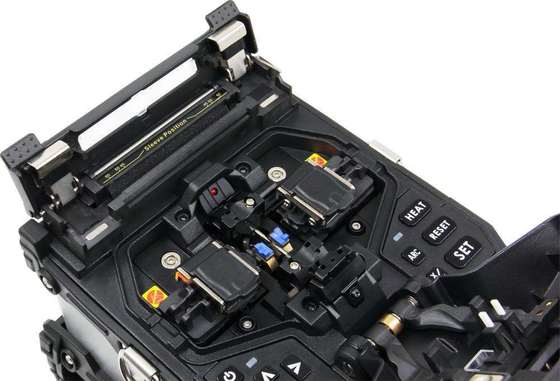

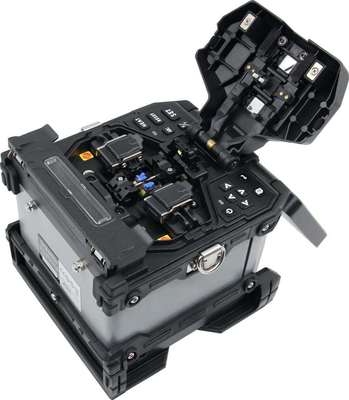

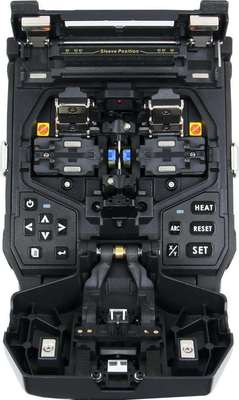

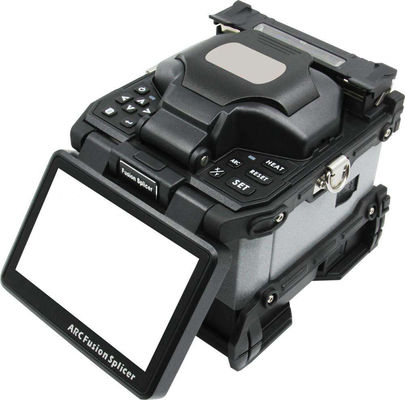

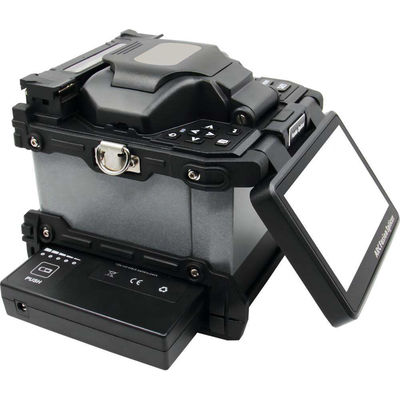

Large Image :  Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer

Product Details:
Place of Origin: China
Brand Name: Original
Certification: CE
Model Number: FKEQU-427 GS-601
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiatable
Packaging Details: 34*37*40cm in 1 package
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 100
Contact Now

Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer

Description
Product Name: GS-601Splicing Machine APP: Fiber Cable Splicing
Application: Telecom Network

Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer

GS-601 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with the old version, our start product, GS-601 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.

Alignment method
 6 motors core to core alignment
Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657)
Cladding diameter 80-150μm
Coating diameter 160-3000μm
Cleaved length 5-16mm ( coating diameter<250um)
16mm (coating diameter:250-1000um)
Typical splice loss SM: 0.02dB；MM: 0.01dB；DS/NZDS/BIF: 0.04dB
Return loss >60dB
Splicing program 40 groups
Operation mode Manual/ Automatic
Auto-heating Available
Typical splice time 6 seconds
Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification 250X(X or Y view), 125X(X and Y view)
Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Touch Screen Monitor
Data storage 4000 groups data records
Loss evaluation Available
Tension test 1.8~2.25N
Interface GUI menu interface, easy for operation
Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life More than 4000 ARC discharges, easy to replace
Data storage Pluggable 8GB micro SD card
Terminals USB 2.0 port, for software upgrading, records exporting
Operating Altitude:0-5000m, Humidity:0-95%,Temperature:-10~+50℃; Wind:max 15m/s
Dimension/Weight
156mm(L)×141mm(W)×156mm(H) / 2.45kg (including battery)





Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 0Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 1Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 2Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 3Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 4Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 5





About Us
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 6
Shenzhen Fongko Communication Equipment Co.,Ltd
Shenzhen Fongko Communication Equipment Co.,Ltd is a professional high technology enterprise which engages in researching,developing and sales of various kinds of devices and accessories for optical fiber transmissions system including Optical Fiber CableOptical Fiber Patch cord and Pigtail,POF(Plastic Optical Fiber patch cord), Optical Fiber Adapter,Optical FiberAttenuator,Optical Fiber Terminal Box,Fiber Optic Cross Connection Cabinet,Fiber Distribution Box, Fiber Distribution Frame (ODF) Media Converter, Fiber Optic Transceiver,Optical Fiber Splitter,Coupler,(D)WDM (Wavelenath Division Multiplexing),EDFA(Erbium-doped Optical Fiber Amplifier),Digital Video Optical Multiplexer, Instruments and Tools etc.

Our company has already established business relationship with customers from Eastern & Western Europe,South& North America.Central Asia.and Africa and so on.
Our Advantages
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 7
Team Photo
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 8
Certificate
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 9
Production Flow
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 10
PACKING&SHIPPING
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 11
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 12
Machine Automatic Splice Machine Core Alignment GS-601 Fiber Optic Fusion Splicer 13
FAQ
1. What is your MOQ?
Answer: 1

2. Can I print my own design on the product?
A: Yes, we can make customized products and logos according to customer needs.

3. Can the price be reduced? Is there any discount?
A: The price can be reduced, the price can be negotiated.

4. Can I get free samples?
Answer: Yes

5. How do we pay? Shipping method?
A: T/T payment is the main method, and the payment method can be negotiated; express, sea or air.

6. What is the delivery time for our samples and orders?
A: 1~2 days for samples, delivery time is negotiated.
