AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use

AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use
AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use

Large Image :  AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: FKEQU-442
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use

Description
Product Name: Fiber Optic Fusion Splicing Machine Certificate: RoHS
Application: Optical Fiber Cable Splicing Operating Temperature: -25~+50℃
Typical Splicing Duration: 6 Seconds Heating: 15S
Motors: 6

AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use

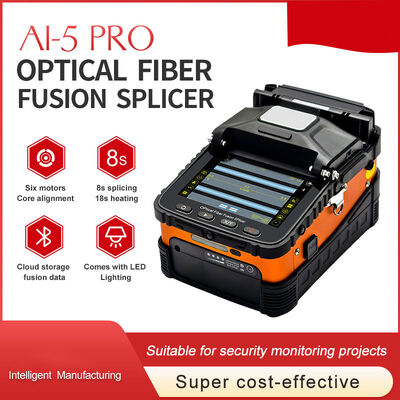

AI-5 pro use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes.



Fiber alignmentt Core/cladding
Motor number Six motors (accurate of fiber alignment:0.5μm)
Splicing time 8s
Heating mode 18s,can be customized according to the external environment
Fiber type Single-mode fiber (SMF/G.652),multimode fiber(MMF/G.651),dispersion-shifted fiber(DSF/G.653),
non-zero dispersion-shifted fiber(NZ-DSF/G.655),and bend-insensitive fiber(BIF/G.657);suitable
for splicing bare fiber,pigtail,drop fiber,patch cord,and invisible fiber.
The cladding diameter 80-150 μm
Splicing loss 0.02dB(SM),0.01dB(MM)0.04dB(DS/NZDS)
Splicing mode Automatic focusing core alignment,conventional/high precision welding
Splicing way Automatic,semi-automatic

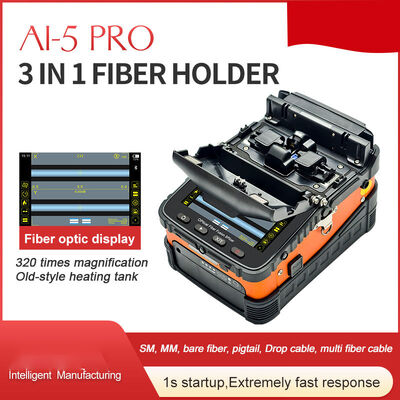

Fiber holder Three in one fixture,no need to change,suitable for single/multi-mode,multi-core cable/bare fiber,tail
fiber,jumper fiber,drop cable

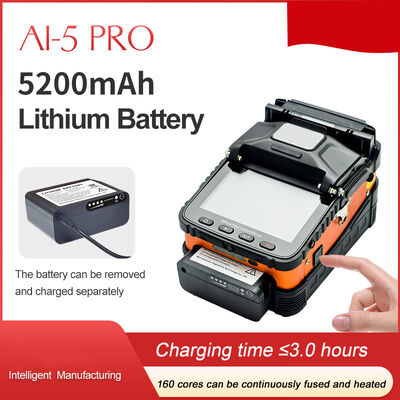

Battery capacity 5200mAh large capacity lithium battery charging time ≤3.0 hours;It can continuously weld and heat
about 160 cores
Magnification 320x(X orYaxis single display),160x(x and Y axis dual display)
Fiber diameter Coating diameter:80-150μm/Coating diameter:100-1000um
Cutting length Coating layer 250um below:8-16mm/coating layer 250-1000μm:16mm
Heat shrink tube 60mm,50mm,40mm,25mm
Tensile testing standard 2N
display 5 inch TFT color display screen
Boot time 1s,boot can enter the working mode
Data is stored Unlimited,machine storage 1000 groups,the excess part can be stored in the server,can export data.
Wireless communication Based on bluetooth 4.2 protocol standard,the working band is 2.4GHz,the maximum transmission
range is 60m
Software upgrade Mobile phone APP Internet update,enable Bluetooth synchronization upgrade machine software
Management function The equipment owner can be bound as the highest authority,and can remotely view the welding
records,welding time,lossetc.through the mobile phone APP.The number of welding times or
working time of the equipment can be set.The manager can effectively manage a single or multiple
equipment.

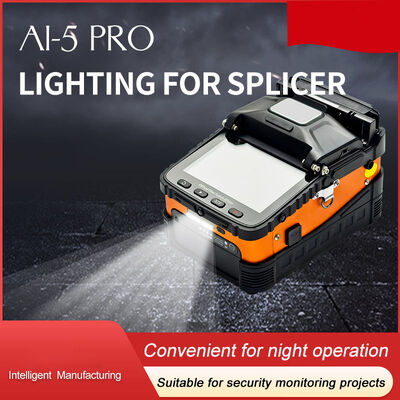

interface USB2.0(Type A)can be used to connect external LED lights and charge mobile devices
Return loss Better than 60 db
Product protection Waterproof,dustproof and fall proof
Power supply Input AC100-240V 50/60Hz,output DC13.5V/4.8A,the current power mode can be identified,real-
time monitoring of the current battery level
The work environment Temperature:-15～+50℃,humidity:<95%RH(no condensation),working altitude:0～5000m,
maximum wind speed:≤15m/s





AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use 0AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignment for FTTH and Network Use 1
