FONGKO Professional Fiber Optic End Face Cleaning Tool Kit Fiber Optic Inspection Set for Telecommunication



The high-end fiber optic cleaning toolkit is a professional toolset used in the field of optical communication for cleaning the end faces of fiber optic connectors.

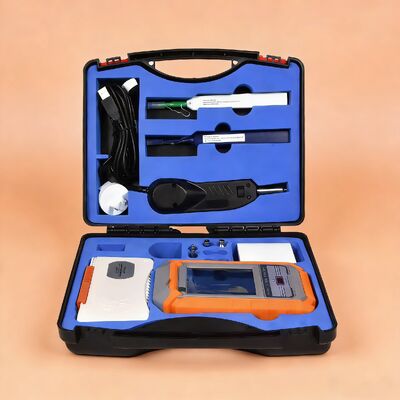

Its core purpose is to address the main cause of fiber optic link failures – connector contamination. It typically includes the following components (corresponding to the items in the image):
One-click fiber optic cleaning pens of different specifications (the white pen-shaped tools with color markings in the image, compatible with LC/MU, FC/SC, etc. interfaces);
Cassette-type fiber optic cleaner (the black handheld tool in the image, used for cleaning connector end faces);

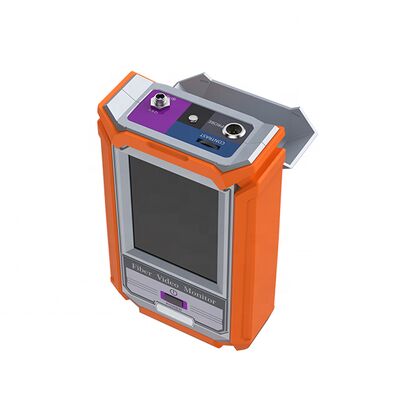

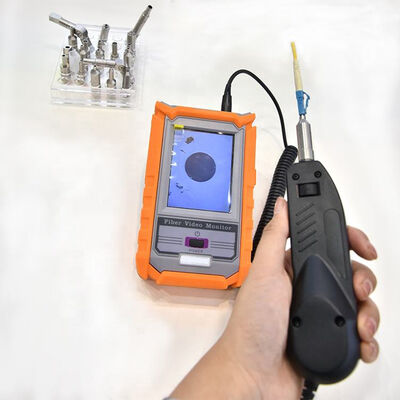

Fiber optic microscope (the device with a display screen in the image, used to inspect the cleaning results);
Corresponding cleaning consumables, charging cable, etc.
These tools are mainly used in optical communication equipment rooms, fiber optic cable maintenance, laboratories, and other scenarios, helping technicians quickly clean fiber optic connectors and ensure signal transmission quality.



Items	Specifications
End-viewer magnification	250x
Resolution	2.5um (200x)
Power supply	12.6VDC or built-in rechargeable lithium battery
Connector types that can be cleaned with the cleaning pen	SC/FC/ST/E2000 connectors and adapters (SC cleaning pen)
Number of times the cleaning pen can be used	Over 800 cycles
Connector types that can be cleaned with the cleaning cartridge	SC/FC/ST/E2000/LC/MU/MPO connectors
Number of times the cleaning cartridge can be used	Over 500 cycles
Operating temperature	-10~50℃
Storage temperature	-20~50℃
Weight	1.6kg
Dimensions	275mm (L)*230mm (W)*820mm (H)
