OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market

OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market
OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market

Large Image :  OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market

Product Details:
Place of Origin: China
Brand Name: Fongko
Model Number: FKEQU-439
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: Negotiatable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Contact Now

OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market

Description
Product Name: Mini OTDR Type: Testers &Tools
Place Of Origin: China Material: Plastic
Weight: 2KG Wavelength Range: 800nm~1700nm

OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market

Mini OTDR

Mini Optical Time Domain Reflectometer Features: 4.3-inch multi-touch capacitive screen, support new gesture zoom function, screen screenshot Intelligent multi-function, twelve-in-one functional module: automatic OTDR, expert OTDR, event map, optical power meter, visible red light, adjustable light source, optical loss test, RJ45 network cable to line, RJ45 network cable distance measurement, RJ45 network cable Line hunting, flashlight, end detection (optional) Automatic OTDR, no complicated settings, one-key test Expert OTDR, professional measurement mode, simultaneous display of curve, list and MAP view Event blind zone 2.5m, attenuation blind zone 8m, measurement range up to 100KM Support optical test with less than -5dBM optical signal, high isolation bilateral filtering technology, Support automatic save, SOR file format, 8G storage capacity, can store 200,000 items Support Type-C charging interface, 4000mAh polymer battery, battery life is more than 12 hours.

Pulse Width (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs:
(MM 850/1300NM) 5ns,10ns,20ns,50ns,100ns,500ns,1us
Distance Range (SM 1310/1550NM) Dead zone test.1.3km,2.5km.5.0km,10km,20km,40km,80km,120km,
(MM 850/1300NM):100m,400m,1.3km,2.5km,5km,10km,20km,40km,80km
Sampling Resolution Minimum0.05m
Sampling Point 128,000
Linearity ≤0.05dB/dB
Loss Threshold 0.01dB
Loss Resolution 0.001dB
Distance Resolution 0.01m
Distance Accuracy ±(1m+measuringdistancex3x10 +sampling resolution)
Data Storage 80000 groups of curve
VFL 10mW,CW/2Hz
Interface 3 USB ports (Type Ax2,Type Bx1)
Display 5.6 inch TFT-LCD,Touching screen
Battery 7.4V/4.4Ah lithium battery , support 8 hours continuous working
Working conditions Working Temp:-10℃~+50℃:Storage Temp:-20℃~+70℃:Humitity:≤95%(non-dew)
Dimensions/Weight 253x168x73.5mm/1.5kg (include battery)

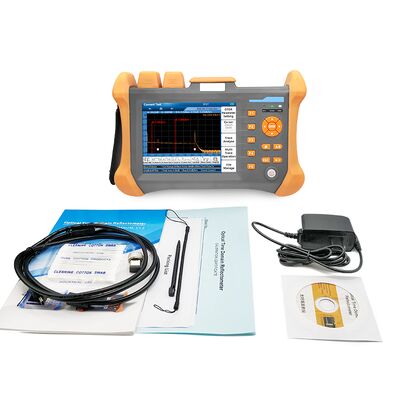

Packing list Straps; Adaptor; Lithium battery;FC connector,USD Cable;User Guide; CD;softbag;cleaning cotton
