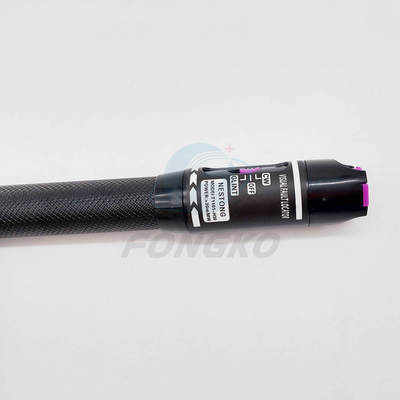

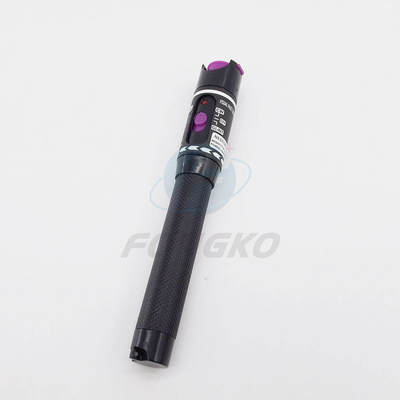

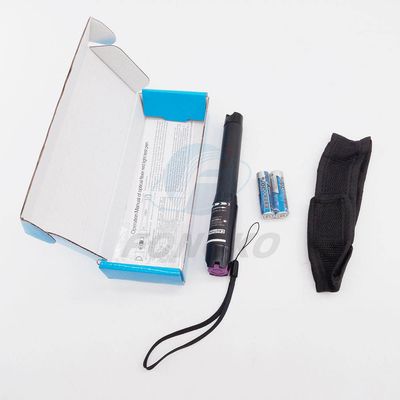

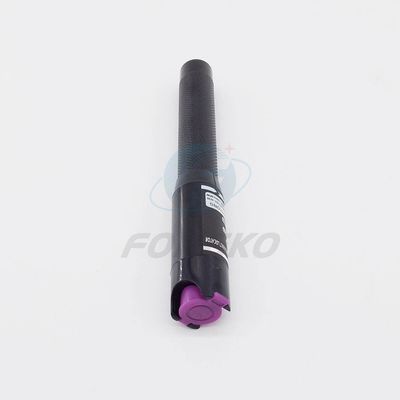

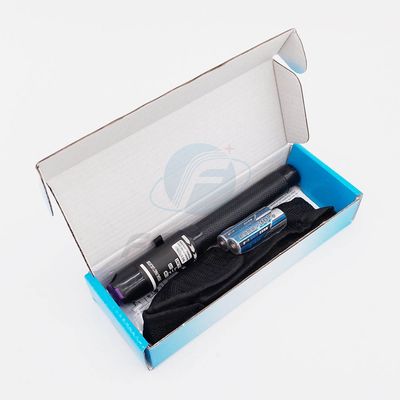

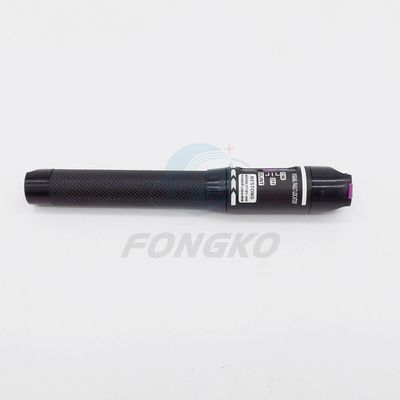

30mw FTTH VFL OFI Fiber Laser Pointer 30KM VFL Pen 650nm Transmission Visual Fault Locator

Large Image : 30mw FTTH VFL OFI Fiber Laser Pointer 30KM VFL Pen 650nm Transmission Visual Fault Locator

Product Details:

Place of Origin:	China
Brand Name:	No
Certification:	RoHS
Model Number:	FKEQU-109

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiatable
Delivery Time:	3-5 working days
Payment Terms:	T/T, L/C

Contact Now

30mw FTTH VFL OFI Fiber Laser Pointer 30KM VFL Pen 650nm Transmission Visual Fault Locator

Description

Product Name:	Pen-type Visual Fault Locator	Red Light Output Power:	30mW
Output Wavelength:	650nm	Fiber Optic Adapter:	Universal Connectors
Battery Type:	5 Alkaline Batteries 2pcs	Application:	Telecom Network
Certification:	RoHS
Highlight:	30mw FTTH fiber laser pointer , 650nm visual fault locator , 30KM VFL pen with warranty

30mw FTTH VFL OFI Fiber Laser Pointer 30KM VFL Pen 650nm Transmission Visual Fault Locator

Introduction:

650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful
assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.

Features:

--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.

Wavelength	650nm±10nm
Light source	FP-LD laser
Output power	1mw,10mw,20mw,25mW,30mW (optional)
Connector	2.5mm universal adapter
Working mode	CW or 2Hz modulation
Operating temperature	0~+60°C
Storage temperature	-25~+70 °C
Power	2pcs AA battery
Working hours	≥10
Weight	160g
Dimension (mm)	1752626
