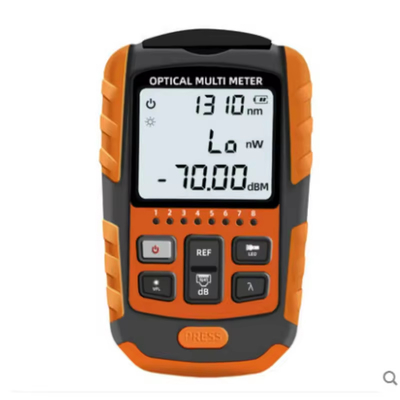

Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C

Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C
Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C
Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C

Large Image :  Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C

Product Details:
Place of Origin: China
Brand Name: No
Certification: RoHS
Model Number: FKEQU-082
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiatable
Delivery Time: 4-6 working days
Payment Terms: T/T, L/C
Contact Now

Mini Optical Power Meter for Wavelength 800-1700nm and Operating Temperature -10- 50C

Description
Product Name: Mini Optical Power Meter Connector: FC/SC/ST Universal Adaptor
Wavelength: 800~1700nm Type: Testers &Tools, Testers &Tools
Power Supply: Alkaline Battery(3 AA 1.5V Batteries) Operating Temperature(℃): -10~+50℃
Dimension(mm): 110mmx68mmx27mm
Highlight:

Mini Optical Power Meter

,

1700nm Optical Power Meter



Optic Fiber OPM Optical Power Meter Mini Optical Power Meter


OPM
Wavelength range
800nm~1700nm
Optical connector
Universal joint
Detector type
InGaAs
Power measurement range
-70dBm~+6dBm
-50dBm~+26dBm
uncertainty
±5%

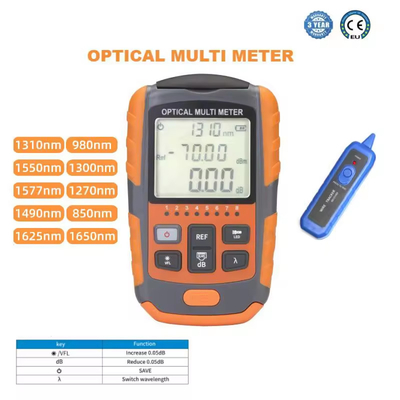

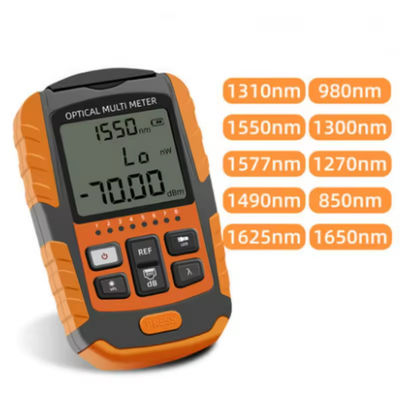

Calibration wavelength
850/980/1270/1300/1310/1490/1550/1570/1625/1650nm
Display resolution
Linear display: 0.1%, logarithmic display: 0.01dB
Recognizable frequency
CW,270Hz,330Hz,1kHz,2kHz

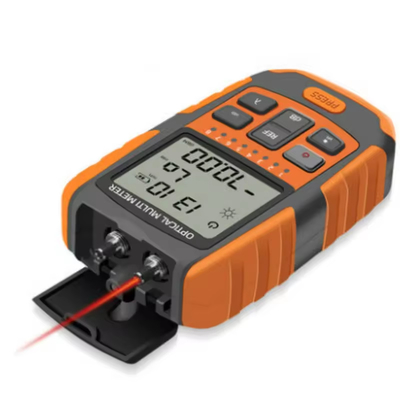

Visual fault location (optional)
Working wavelength
650nm±30nm
Output Power
2mW/10mW/30mW/50mW
Operating mode
CW/1Hz/2Hz
Optical connector
Universal joint

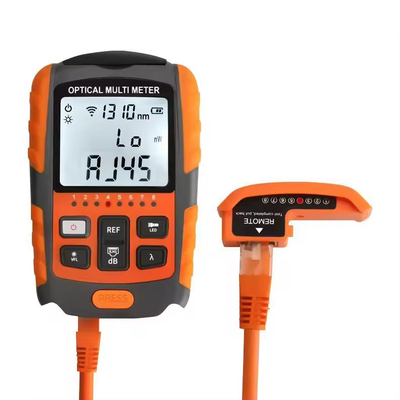

RJ45 line sequence (standard), hunting (optional)
Test distance
≤300 meters
Machine
Power supply
2 AAA batteries/Lithium batteries: 3.7V/700mAh (optional)
Interface
Type-C
Battery continuous working time
≥120h(Optical power meter function)
Auto shutdown time
10min
Operating temperature
-10°℃-+50℃
Storage temperature
-40°℃-+70℃
relative temperature
0-95％ No condensation
Size
110mmx68mmx27mm
Weight
120g/130g
Ordering Information
FKEQU-082-A-B-C-D
A
B
C
D
Power meter range:
5. -50dBm~+26dBm;
7. -70dBm~+6dBm
Red light power:
0. Not available;
2. 2mW;
10.10mW;
30.30mW;
50. 50mW
Battery:
D. dry battery;
L. Lithium battery
Hunting function:
0. Not available;
1. Have
Selection instructions: the range of the power meter is required, and the others are optional
