Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine

Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine
Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine

Large Image :  Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Fongko
Certification: Rohs, SGS, ISO
Model Number: FKEQU-166
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Contact Now

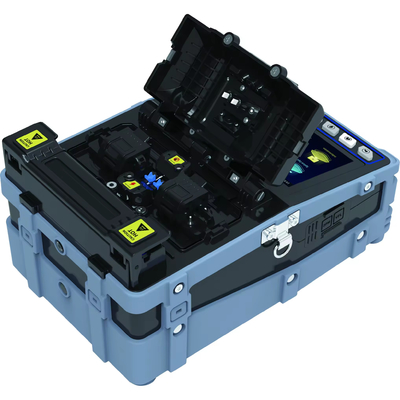

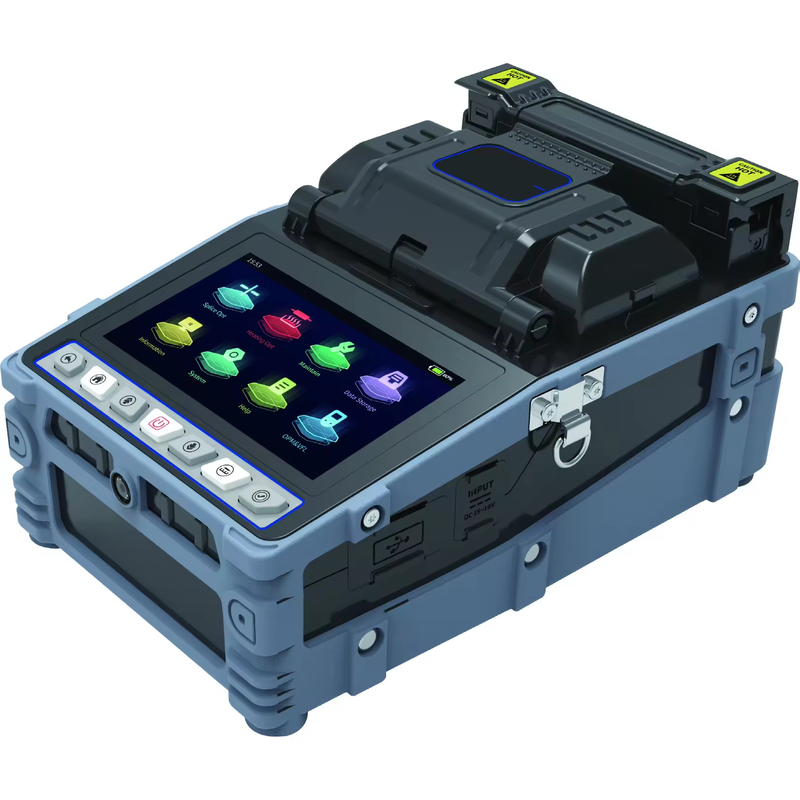

Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine

Description
Product Name: Fiber Optic Fusion Splicing Machine Certificate: RoHS
Application: Optical Fiber Cable Splicing Operating Temperature: -25~+50℃
Typical Splicing Duration: 6 Seconds Heating: 15S
Motors: 6
Highlight:

Custom Fiber Optic Fusion Splicer

,

Fiber Optic Fusion Splicer Machine

,

FTTH Fiber Optic Splicing Machine

OPM VFL FTTH Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer

Optical Fiber Welder machine is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Optic fibre splicing machine widely used in the construction, inspection, maintenance of fiber cable.
Project
FKEQU-166
Motor
Cladding Alignment (Quad Motors)
Image magnification
320x
Extension modules
Standard configuration: OPM (-50~+26dBm)/VFL (10mW), optional: split-wave OPM
Fixture
Three-in-one multifunctional clamp
Illumination
Dual LED V-groove lighting
Applicable fiber types
Including G651, G652, G653, G655, G657
Fiber cutting length
6-16mm
Splice loss
SM:0.02dB,MM:0.01dB,NZ:0.03dB,NZDS:0.04dB
discharge electrode
≥5000 times
Splice mode
200 welding program presets
Heating mode
80 preset heating programs
Automatic heating
Support
Welding time
Standard welding time is ≤7 seconds
Heating time
Standard heating time ≤18 seconds
Return loss
≥60dB
Suitable for heat shrink tubing
20~60mm
Pull test
The pulling force is 1.96N~2.1N
Storage
Can store about 1,600 images and 10,000 sets of data
Interface
GUI graphical operation interface, equipped with graphical maintenance navigation function
Battery capacity
5200mAh, typical operating times 300 times
Language
Multiple display languages available for users to choose from
Altitude
Can work at altitudes from 0 meters to 5000 meters above sea level
Temperature
-20°C~+50°C
Humidity
0~95% (no condensation)
Storage conditions
Relative humidity 0~95%, -40~70℃
Power supply mode
AC100~240V,DC15~19V
Boot time
Quick boot in 3 seconds
Show
4.3-inch high-definition capacitive touch screen, dual button/touch control
Port
Type-C, USB2.0 (can be used to export data)
Size
207x136x103mm
Weight (including battery)
1550g



Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine 0

Custom Fiber Optic Fusion Splicer VFL OPM FTTH Fiber Optic Splicing Machine 1
