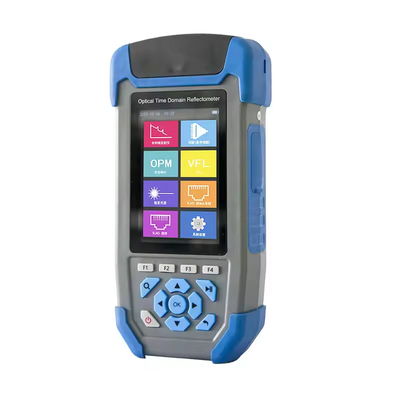

FTTH Optical Cable Tester 1310 1550nm Fiber Optic Mini OTDR Fiber Optic Tools And Equipment

FTTH Optical Cable Tester 1310 1550nm Fiber Optic Mini OTDR Fiber Optic Tools And Equipment
FTTH Optical Cable Tester 1310 1550nm Fiber Optic Mini OTDR Fiber Optic Tools And Equipment

Large Image :  FTTH Optical Cable Tester 1310 1550nm Fiber Optic Mini OTDR Fiber Optic Tools And Equipment

Product Details:
Place of Origin: China
Brand Name: No
Certification: RoHS
Model Number: FKEQU-156
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiatable
Delivery Time: 4-6 working days
Payment Terms: T/T, L/C
Contact Now

FTTH Optical Cable Tester 1310 1550nm Fiber Optic Mini OTDR Fiber Optic Tools And Equipment

Description
Product Name: Optical Power Meter Connector: SC/LC/FC/ST
Wavelength: 850 980 1300 1310 1550 1625nm 650nm VFL (optional): 2mw/5mw/10mw/20mw/30mw/50mw
Certification: ISO
Highlight:

FTTH Optical Cable Tester

,

OTDR Fiber Optic Tools And Equipment

,

Fiber Optic Mini OTDR



FTTH Optical Cable Tester 1310 1550nm Fiber Optic Mini OTDR


Model
FKEQU-196
Wavelength
1550nm±20nm
Fiber Type
G.652 SM Fiber
Dynamic Range
22dB
Event Blind Zone
3m
ATT Blind Zone
8m
Test Range
500m~60km
Pulse Width
3ns~10us
Ranging Accuracy
±(1m+Sampling Interval +0.005%×Test Distance)
Loss Accuracy
±0.2dB/dB
Sampling Points
16k~128k
Sampling Resolution
0.05m~8m
Reflection Accuracy
±3dB
Data Storage
Internal:≥600;External:TF Card
Laser Safety Level
Class Ⅱ level
File Format
SOR Standard File Format
Connector
FC/UPC(Interchangeable SC,ST)
OPM
Wave Range
800nm~1700nm
Interface Type
Universal Joint FC/SC/ST
Test Range
-50dBm~+26dBm
Uncertainty
±5%
Frequency Identification
CW/270/330/1k/2kHz
Calibration Wavelength
850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type
FP-LD
Output Wavelength
1550nm±20nm
1310nm/1550nm±20nm
Output Power
≥-5dBm
Modulation Frequency
270/330/1k/2kHz
Stability
CW,±0.5dB/15min(Test after15mins of preheating)
Connector
FC/UPC(Interchangeable SC,ST)
VFL
Work Wavelength
650nm±20nm
Output Power
≥10mW
Mode
CW/1Hz/2Hz
Connector
FC/SC/ST
Test Range
300m
Other Parameters
Dispaly
3.5 inch Color LCD
Data Interface
Micro USB
External Storage
TF Card
Power Supply
Polymer Li-battery:3.7V,4000mAh
Power Adapter:5VDC,2A
Battery Life
Standby>20h;Measuring Time>12h
Operating Temperature
-10℃~+50℃
Storage Temperature
-40℃~+70℃
Relative Humidity
0~95%Non Condensing
Weight
≤350g
Dimension
173mm×82mm×37mm
Functions:OTDR/OPM/OLS/VFL/Loss Tester/Flashlight
