Product Details:
|

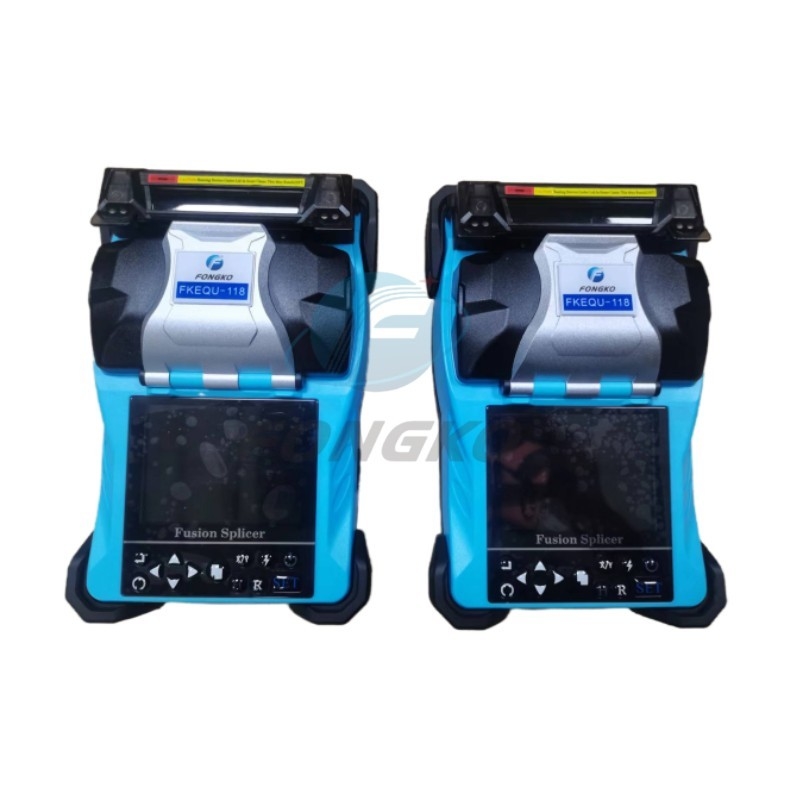

Product Name: | Fiber Optic Fusion Splicing Machine | Certificate: | RoHS |
---|---|---|---|
Application: | Optical Fiber Cable Splicing | Operating Temperature: | -25~+50℃ |
Typical Splicing Duration: | 7 Seconds | Typical Heating Duration: | 18 Seconds |
Highlight: | Wielding Fusion Splicing Machine,Fiber Optic Fusion Splicing Machine,FTTH Fusion Splicing Machine |
Applicable optical fiber
|
SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber typesand self-defined optical fiber types
|
Splicing loss
|
0. 02dB (SM) , 0. 01dB (MM) 0. 04dB (DS/NZDS)
|
Return loss
|
Over60dB
|
Typical splicing duration
|
9 seconds
|

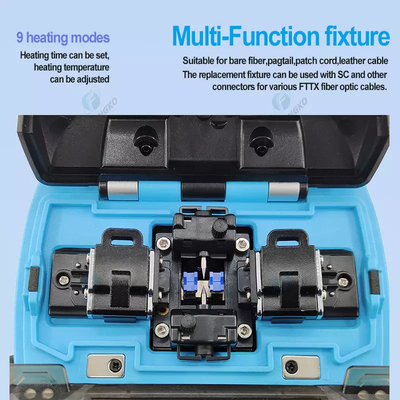

Typical heating duration
|
26 seconds (configurable heating time and adjustable heating temperature )
|

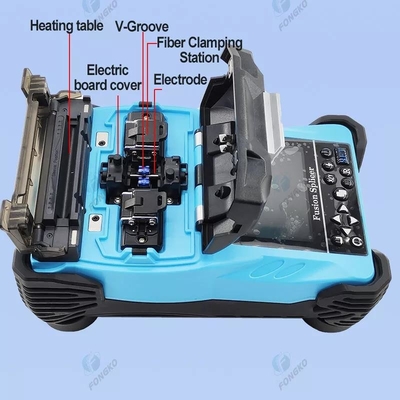

Optical fiber alignment
|
Precise alignment, fiber core alignment, cladding alignment
|
Optical fiber diameter
|
Cladding diameter 80~150μm, coating layer diameter 100~1000μm
|
Cutting length
|
Coating layer below 250μm:8~16mm;coating layer 250~1000μm:16mm
|
Tension test
|
Standard 2N(optional)
|
