96 Cores IP68 FTTX Outdoor Fiber Splice Enclosure 3 In 3 Out

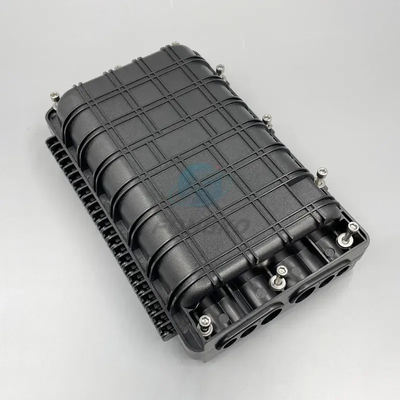

Large Image : 96 Cores IP68 FTTX Outdoor Fiber Splice Enclosure 3 In 3 Out

Product Details:

Place of Origin:	Shenzhen,Guangdong,China
Brand Name:	Fongko
Model Number:	FKSCL-106

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiatable
Payment Terms:	L/C, T/T

Contact Now

96 Cores IP68 FTTX Outdoor Fiber Splice Enclosure 3 In 3 Out

Description

Product Name:	Fiber Optic Splice Closure	Material:	ABS / ABS+PC
Capacity:	96 Cores	Cable Ports:	3in 3out
Mounting:	Wall Mounting	Application:	Manhole
Size:	30020080mm
High Light:	96 Cores Outdoor Fiber Splice Enclosure , IP68 Outdoor Fiber Splice Enclosure , FTTX Fiber Splice Enclosure

96 Core Fiber Splicing Box 3 in 3 out Fiber Optic Splice Closure

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure.

There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.

Applications
Used for direct transmission of outdoor cable in aerial,duct and direct buried application.

Used for branching connection and protect the joint.

Item	96 Core Fiber Optic Closure(3 in 3 out)
Dimension(mm)	30020080
Material	ABS / ABS+PC
Weight(Kg)	1.35kg
Diameter of Cable(mm)	A : φ 13mm B: φ 16mm C: φ 20mm
No. of Cable Inlet/Outlet	3IN-3OUT

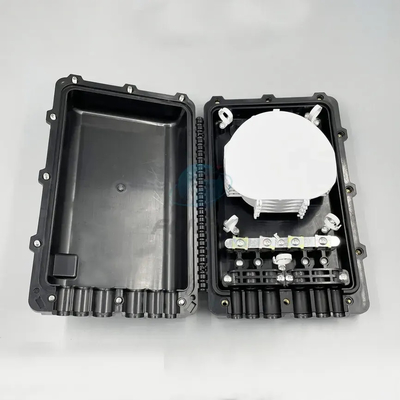

Number of Fibers per Tray	Splice 96 Fibers (4 trays,24 core/tray)

Tag:

Contact Person: Mr. Michael Liu

Tel: 008618823427967

Fax: 86-755-82504539
