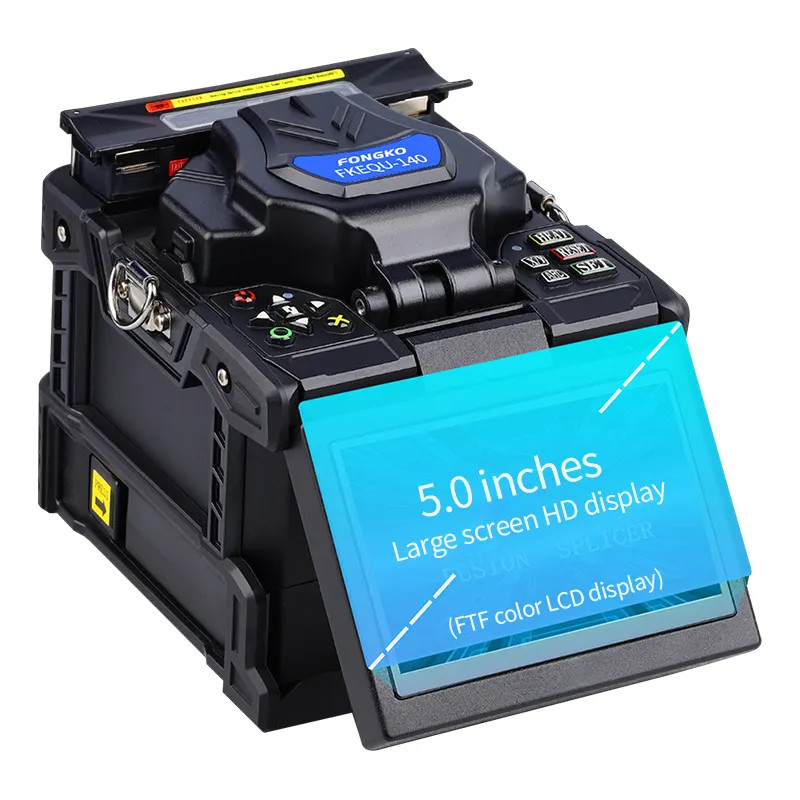

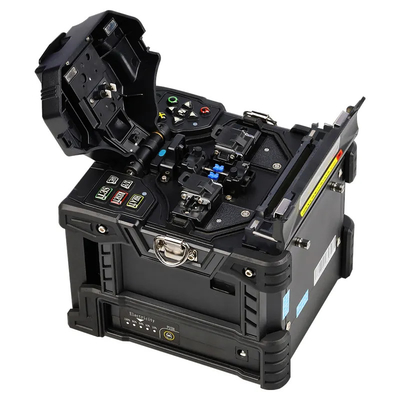

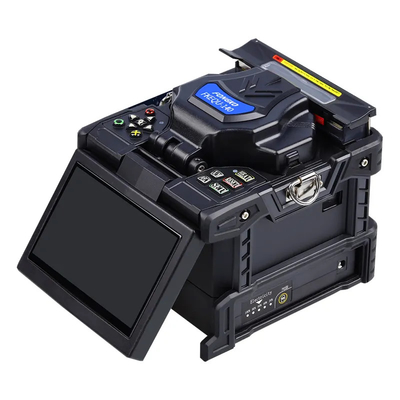

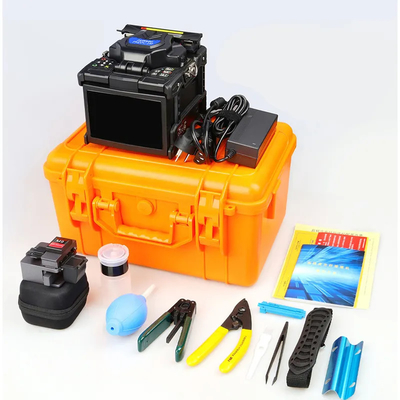

Product Details:
|
| Product Name: | Fiber Optic Fusion Splicing Machine | Certificate: | RoHS |
|---|---|---|---|
| Application: | Optical Fiber Cable Splicing | Operating Temperature: | -25~+50℃ |
| Typical Splicing Duration: | 7 Seconds | Typical Heating Duration: | 18 Seconds (configurable Heating Time And Adjustable Heating Temperature ） |
| High Light: | FTTH Fusion Fiber Optic Splicer,G 657 Fusion Fiber Optic Splicer |
||
|
Applicable optical fiber
|
SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber typesand self-defined optical fiber types
|
|
Splicing loss
|
0. 02dB (SM) , 0. 01dB (MM) 0. 04dB (DS/NZDS)
|
|
Return loss
|
Over 60dB
|
|
Typical splicing duration
|
7 seconds
|
|
Typical heating duration
|
18 seconds (configurable heating time and adjustable heating temperature )
|
|
Optical fiber alignment
|
Precise alignment, fiber core alignment, cladding alignment
|
|
Optical fiber diameter
|
Cladding diameter 80~150μm, coating layer diameter 100~1000μm
|
|
Cutting length
|
Coating layer below 250μm:8~16mm；coating layer 250~1000μm:16mm
|
|
Tension test
|
Standard 2N(optional)
|
