Product Details:
|
| Product Name: | Optical Power Meter | Optical Connector: | FC/SC/ST |
|---|---|---|---|
| Standard Wavelength: | 850 980 1300 1310 1490 1550 1625nm | Color: | Orange |
| Detector Type: | InGaAs | ||
| High Light: | 1625nm Optical Power Meter,15mw Optical Power Meter |
||

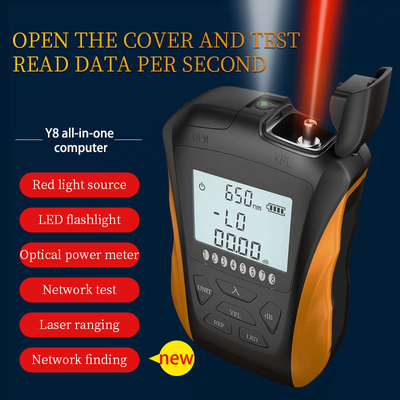

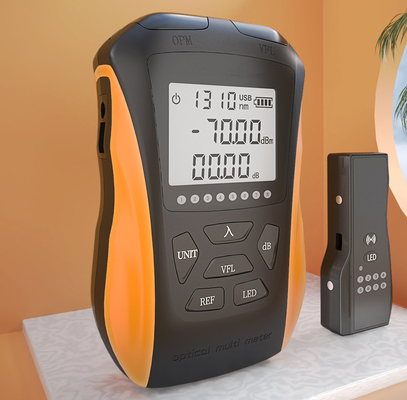

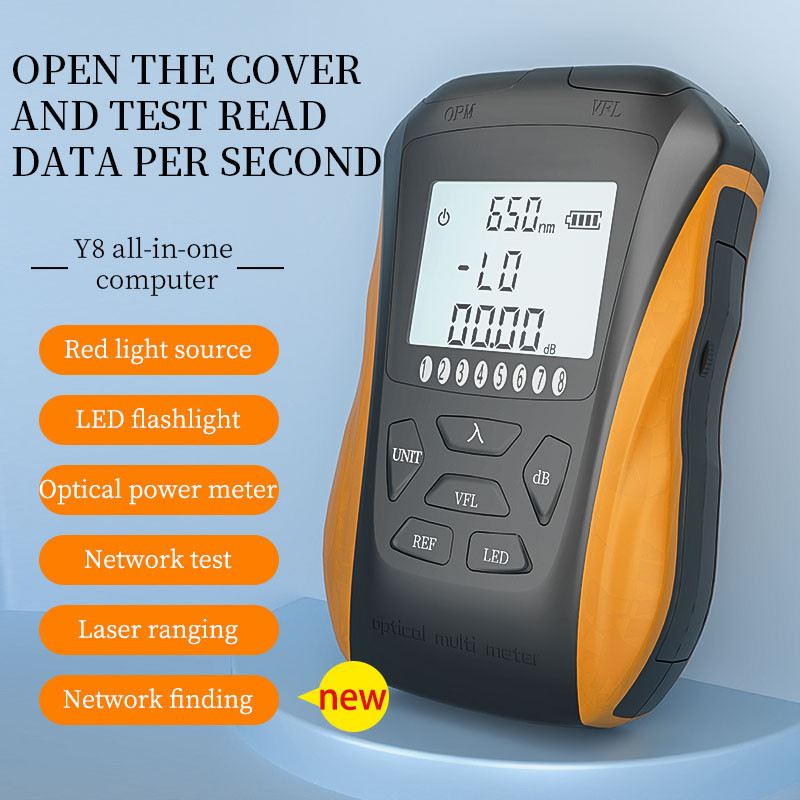

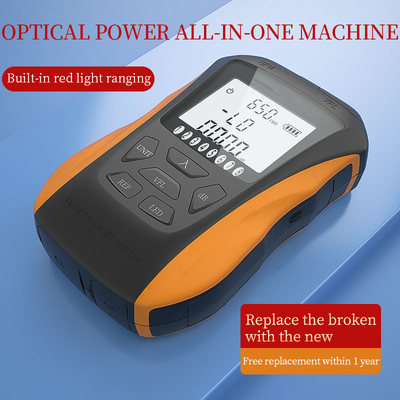

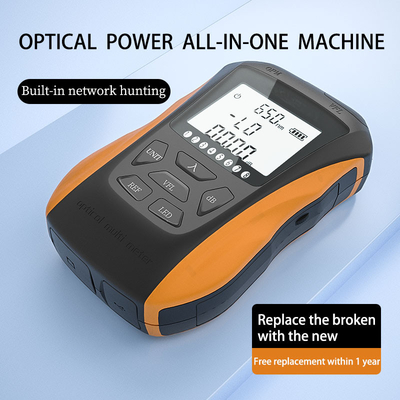

FONGKO Network test OPM + VFL+ LS Visual Fault Locator Light Source SC FC ST Mini Optical Multi Power Meter
Introduction
An optical power meter is a device used to measure the power or intensity of an optical signal. It is commonly used in the field of fiber optics to measure the power levels in optical networks.
Optical power meters are designed to work with different types of optical signals, such as visible light or infrared light, depending on the specific application. They typically consist of a photodetector, which converts the optical signal into an electrical signal, and a display unit that provides a readout of the measured power level.
|
Item
|
Value
|
|
Place of Origin
|
China
|
|
Product name
|
Multifunction Optical Power Meter
|
|
Color
|
Black Orange
|
|
Wavelength
|
850/980/1270/1300/1310/1490/1550/1577/1625nm
|
|
Power measurement range
|
-70~+10dbm/-50~+26dbm
|
|
VFL power
|
15mW(20mW, 30mW optional)
|
|
Connector Type
|
SC FC ST
|
|
Battery
|
1100mAh Li-battery
|
|
Power supply
|
DC +5V/1A Output
|
