Product Details:
|
| Product Name: | Visual Fault Locator | Application: | Telecom Network |
|---|---|---|---|
| Fiber Optic Adapter: | Universal Connector | Storage Temperature: | -20~70℃ |
| Wavelength: | 1310nm / 1550nm | Output Wavelength:: | 650nm |
| Highlight: | 1550nm Visual Fault Locator 30mw,Fiber Optic Visual Fault Locator 30mw,1310nm Fiber Optic Visual Fault Locator |
||

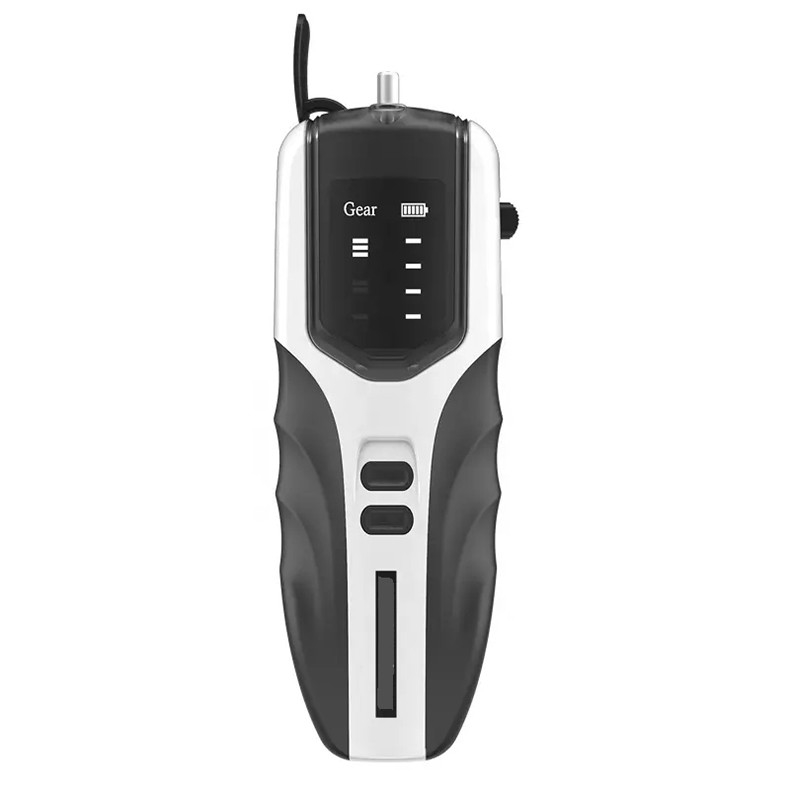

FONGKO Chargeable 5mw 15mw 20mw 30mw Lithium battery Fiber Optic Cable Red Lase Visual Fault Locator VFL
Introduction:
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful
assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
Features:
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
|
Wavelength
|
650nm±10nm
|
|
Light source
|
FP-LD laser
|
|

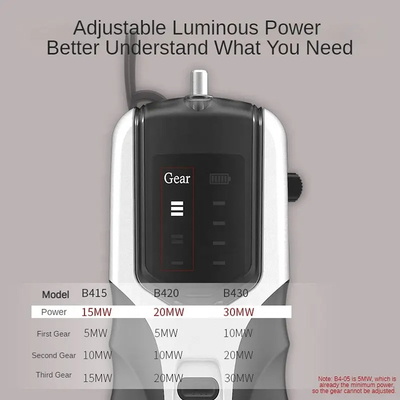

Output power
|
Dry battery:5mw,15mw
Lithium battery:5mw,15mw,20mW,30mW (optional) |
|
Connector
|
2.5mm universal adapter
|
|
Working mode
|
CW or 2Hz modulation
|
|
Operating temperature
|
-20~+60 °C
|
|
Storage temperature
|
-25~+70 °C
|
|
Power
|
2pcs AA battery/Lithium battery
|
|
Weight
|
83g
|
