Product Details:
|
Product Name: | Optical Fiber Cleaver | Application: | Telecom Network |
---|---|---|---|
Applicable Fiber: | Silica Optical Fiber | Applicable Bare Fiber Diameter: | 125um |
Blade Life: | 48,000 Times | Cleaved Fiber Length: | 5~16mm(0.25);10~16mm(0.9) |
High Light: | Fiber Optic Cleaver 5mm,125um Fiber Cleaver Cutter,Optical Fiber Cleaver Cutter |

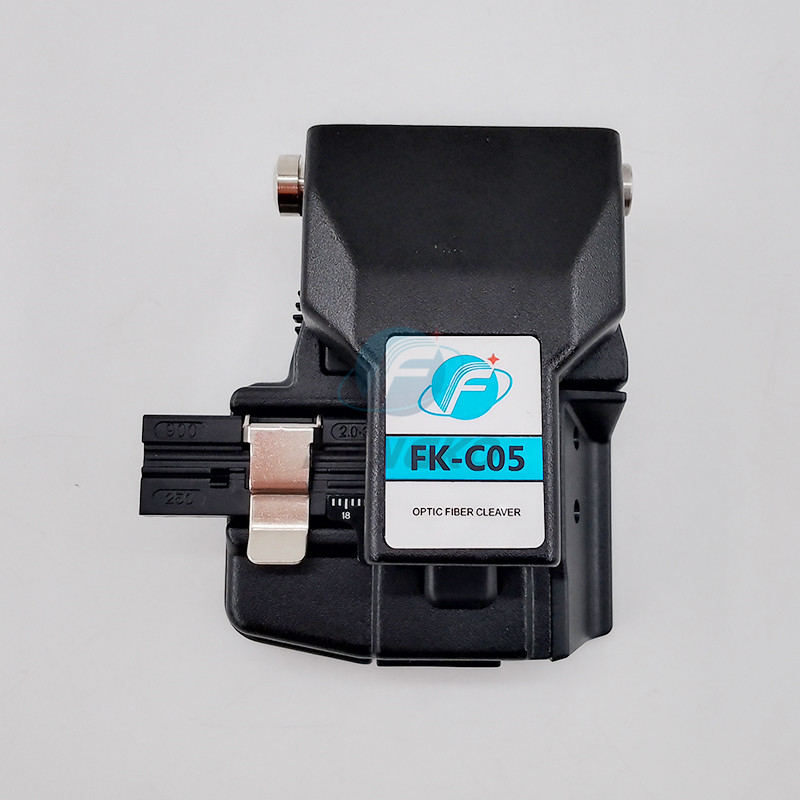

FONGKO FK-C05 FTTH Optical Fiber Optic Cleaver Price Cleaver Fiber Cutter
When working with fiber optic cables, it is important to have a clean and smooth cut on the fiber ends to ensure maximum light transmission and minimize signal loss. The fiber cleaver achieves this by scribing the fiber, creating a stress point, and then applying a controlled force to break the fiber at the scribe line. This results in a smooth, perpendicular cut with minimal damage to the fiber.
Applicable fiber
|
Bare fiber
|
Applicable bare fiber diameter
|
125μm
|
Dimension
|
84*77*42mm
|
Weight
|
200g
|
Cutting angle
|
≤0.5°
|
