Product Details:
|
Product Name: | Optical Fiber Cleaver | Application: | Telecom Network |
---|---|---|---|
Applicable Fiber: | Silica Optical Fiber | Applicable Bare Fiber Diameter: | 125um |
Blade Life: | 48,000 Times | Cleaved Fiber Length: | 5~16mm(0.25);10~16mm(0.9) |
High Light: | 125um Fiber Optic Cleaver Kit,Telecom Network Fiber Optic Cleaver Kit,High Precision Fiber Optic Cleaver |

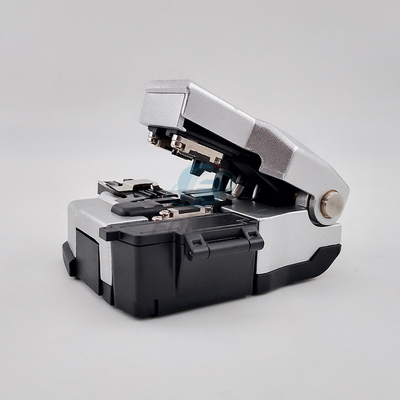

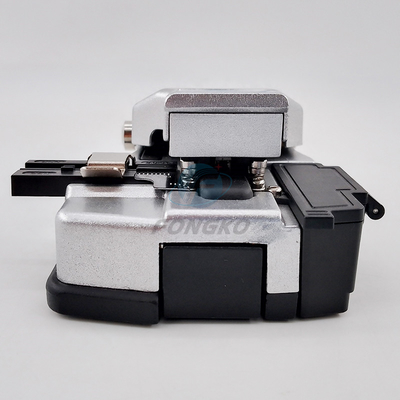

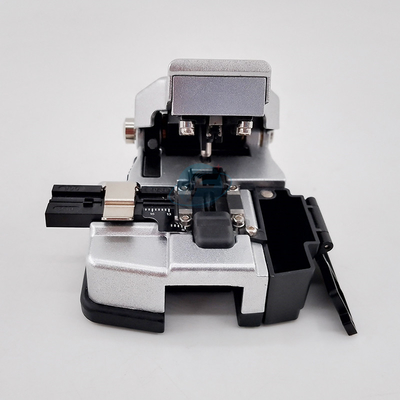

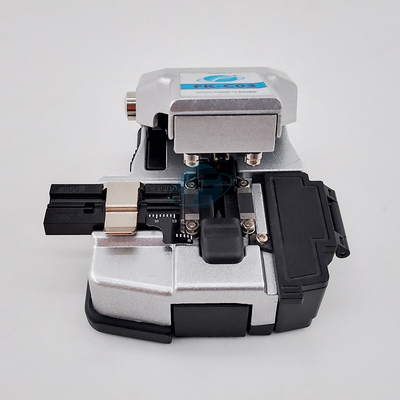

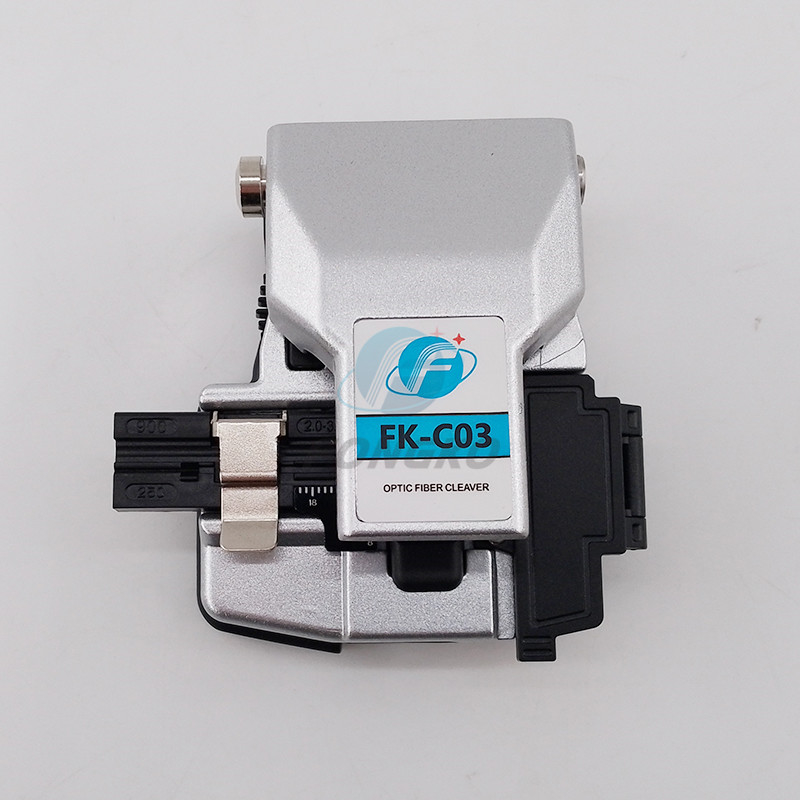

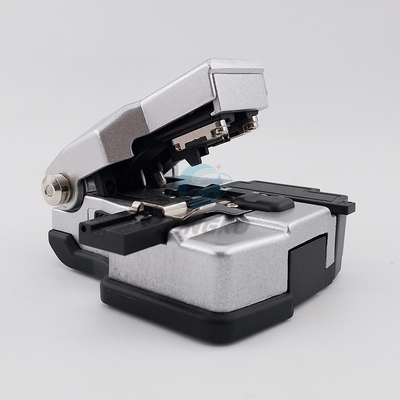

FONGKO FK-C03 Fiber Optic Cleaver Kit Accessories Prices High Precision Fiber Optic Cleaver
fiber cleaver is a specialized tool used in fiber optic cable installation and maintenance.Fiber cleavers come in different designs and styles, but most of them consist of a cutting blade or wheel, a fiber holder or v-groove, and an adjustment mechanism for controlling the position of the fiber.The fiber cleaver achieves this by scribing the fiber, creating a stress point, and then applying a controlled force to break the fiber at the scribe line. This results in a smooth, perpendicular cut with minimal damage to the fiber.
Applicable fiber
|
Bare fiber
|
Applicable bare fiber diameter
|
125μm
|
Dimension
|
84*77*42mm
|
Weight
|
200g
|
Cutting angle
|
≤0.5°
|
