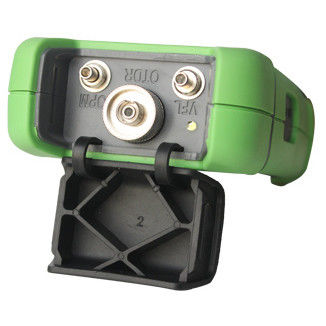

FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer

FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer
FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer

Large Image :  FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer

Product Details:
Place of Origin: China
Brand Name: Fongko
Model Number: FKEQU-151
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: Negotiatable
Payment Terms: L/C, T/T, Western Union, MoneyGram

FONGKO Optical Fiber Tester , 1310 1550nm Handheld Smart Time Domain Reflectometer

Description
Product Name: Mini PRO OTDR Network: Wireless Lan, Bluetooth, Wired LAN, ONVIF, TCP, Ip, POE, GPRS, Wifi, 4g, GSM, 3G, Wiegand, Other
Optical Connector: FC/UPC(Interchargeable SC,ST) Weight (kg): ≤1KG
Battery Operating Time (hour): 12h Dimension(mm): 173mmx82mmx37mm
High Light:

OTDR Optical Fiber Tester

,

1310nm Time Domain Reflectometer

,

1550nm Mini Pro OTDR

FONGKO Optical Fiber Tester Time Domain Reflectometer 26/24dB Event Map OPM LS VFL RJ45 Flashlight Mini Pro Fiber Optic OTDR



Mini PRO OTDR
Model FKEQU-151
Wavelength 1310nm/1550nm±20nm
Fiber Type G.652
Dynamic Range 26dB/24dB
Event Blind Zone 2.5m
ATT Blind Zone 8m
Test Range 500m~128km
Pulse Width 3ns~10us
Ranging accuracy ±(1m+ Sampling interval +0.005%×Test distance)
Loss accuracy ±0.2dB/dB
Sampling Points 16k~128k
Sampling resolution 0.05m~8m
Reflection accuracy ±3dB
Data Storage Internal:≥600;External:TF Card
Laser Safety Level Class Ⅱ
File format SOR Standard file format
Connector FC/UPC(Interchangeable SC,ST)
OPM
Wave Range 800nm~1700nm
Interface Type Universal Joint FC/SC/ST
Test Range -50dBm~+26dBm
Uncertainty ±5%
Frequency Identification CW/270/330/1k/2kHz
Calibration wavelength 850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type FP-LD
Wavelength 1310nm/1550nm±20nm
Output Power ≥-5dBm
Modulation Frequency 270/330/1k/2kHz
Stability CW,±0.5dB/15min
(Test after 15 minutes of preheating)
Connector FC/UPC(Interchangeable SC,ST)
VFL
Wavelength 650nm±20nm
Output Power ≥10mW
Mode CW/1Hz/2Hz
Connector FC/SC/ST
RJ45 Cable Length Measurement
Test Range 300m
Other Parameters
Display Toughened glass 3.5 inch Color LCD
Data Interface Micro USB
External storage TF Card
Power Supply Polymer Li-Battery:3.7V,4000mAh
Adapter:5VDC,2A
Battery Life Standby>20h;Measuring time>12h
Operating Temperature -10℃~+50℃
Storage Temperature -40℃~+70℃
Relative Humidity 0~95%Non Condensing
Size 173mm×82mm×37mm
Weight ≤350g
