Product Details:
|
| Product Name: | Crawler Type Cable Tractors | Key Words: | Fiber Optical Cable Duct Rod Pusher Cable Pulling Traction Machine |
|---|---|---|---|
| Traction: | >300KG | Traction Speed: | 0-1.5m/s |
| Max Opening Size Of The Delivery Port: | 5mm-45mm | Opening Angle: | 0-90° |
| High Light: | Aluminium Fabrication Fiber Optic Cable Blower,Pneumatic Fiber Optic Cable Blower,1.5m/s Cable Blowing Machine |
||

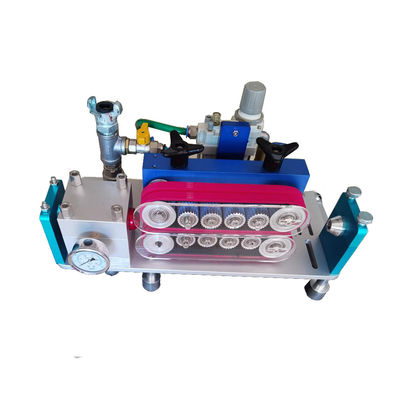

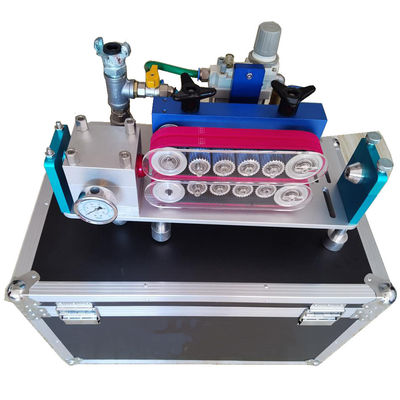

Fiber Optic Cable Blower Machines Aluminium Fabrication Pneumatic Cable Blowing Machine
Product overview
The air blower is designed to lay communication cables (mainly optical fiber, coaxial cable and multi strand cable) into the pre laid pipeline. FKEQU-070 is operated according to the "air blowing" mode: the mechanical cable pushing equipment is used to push the communication optical cable, cable or power cable into the pipeline, and the air compressor sends the strong air flow into the pipeline through the sealing bin of the air blower. This high-speed air flow forms a drag force on the surface of the optical cable to promote the optical cable to move forward. Improve work efficiency and protect the outer protective layer of optical cable.
Parameters of air compressor required: Diesel moving screw air compressor Displacement: 12 ~ 15 M3 Rated pressure: 12 ~ 15bar
| Product name | Pneumatic Cable Blowing Machine |
| Suitable pipe outer diameter | 32mm, 40mm, 50mm HDPE or PE pipe |
| Suitable for | Air blowing optical cable, cable outer diameter: 8 ~ 14mm; |
| Suitable for | Air blowing 1 ~ 3 10 / 8mm HDPE micro tubes (Communication sub tubes); |
| Working pressure | 8bar ~ 16bar |
| Power source | air pressure, 6 ~ 8bar |
| Net weight of main engine | 22kg |
| Volume | 580 * 400 * 350mm, length * width * height |
| Thrust | 0 ~ 700n |
| Maximum pushing speed | 120m / min |
