Product Details:
|
| Type: | Testers &Tools | Visual Indication: | 2.4LCD Display |
|---|---|---|---|
| Adapter: | 14.8v/2A | Size: | 12.8x17.8x4.8cm |
| Test Distance: | 15KM | Product Name: | ACTIVE PIPELINE AND CABLE DETECTOR |
| High Light: | 15km Pipe And Cable Detector,2.4LCD Display Pipe And Cable Detector,15KM Underground Cable Detector |
||

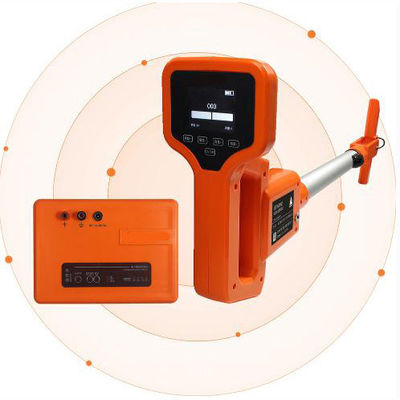

15KM Underground Utilities Locator Kit Active Pipeline and Optical Cable Detector
ACTIVE PIPELINE AND CABLE DETECTOR
Detection of cables and any metal pipelines underground up to 10 m
Direct digital measurement of the depth up to 10 m
Indication of the deviation from the utility axis in the mode “ROUTE”
Direct digital measurement of the current
Survey the ground before the excavation works
Distance of tracing from the place of transmitter connection is up to 15 km
Screen 2.4 inch LCD colour
Quiescent Current<3 mA
Receiving frequency:512HZ band receiver
Detection accuracy:±2.5%-5% positioning accuracy
Operation time:>12 hours
| Launcher | 14.8v3500mAh Lithium battery |
| Voltage | 14.8v,2A |
| Power consumption | Quiescent Current<5 mA |
| Maximum signal current | 150 mA |
| Effective pulse power | 5 w |
| Output impedance | 8Ω,50 Ω,600Ω and so on |
| Maximum output power | ≧5w |
| Signal frequency | 512 Hz-33kzm |
